8. The axle of a small truck is acted upon by the forces and couple shown. Knowing that the diameter of the axle is 36 m

Post by answerhappygod »

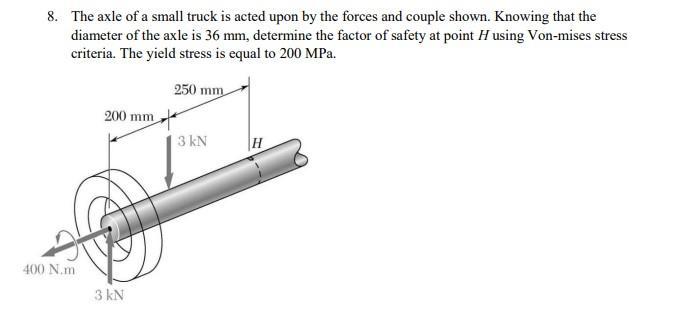

8 The Axle Of A Small Truck Is Acted Upon By The Forces And Couple Shown Knowing That The Diameter Of The Axle Is 36 M 1
8 The Axle Of A Small Truck Is Acted Upon By The Forces And Couple Shown Knowing That The Diameter Of The Axle Is 36 M 1 (19.83 KiB) Viewed 46 times
8. The axle of a small truck is acted upon by the forces and couple shown. Knowing that the diameter of the axle is 36 mm, determine the factor of safety at point H using Von-mises stress criteria. The yield stress is equal to 200 MPa. 250 mm 200 mm 3 KN H 400 Nm 3 KN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
