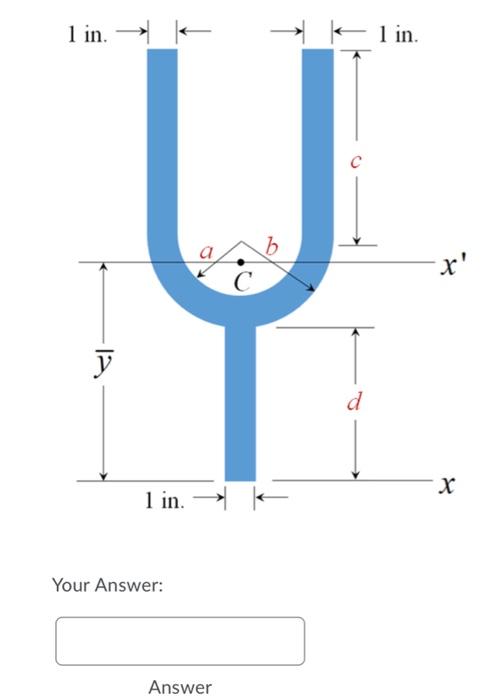

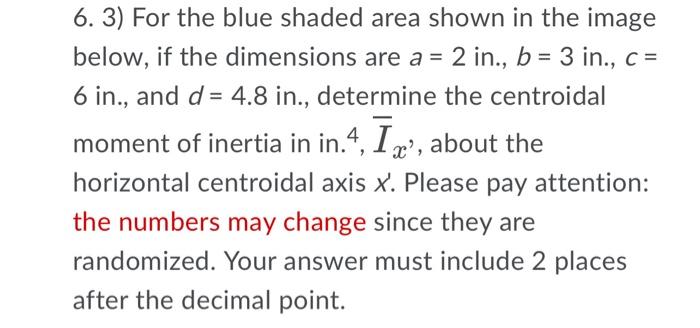

6.3) For the blue shaded area shown in the image below, if the dimensions are a = 2 in., b = 3 in., C= 6 in., and d = 4.8 in., determine the centroidal moment of inertia in in.4, 7x3, about the X' horizontal centroidal axis x. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
1 in. I . k . 1 in. с x' Ý d х 1 in. - Your Answer: Answer
