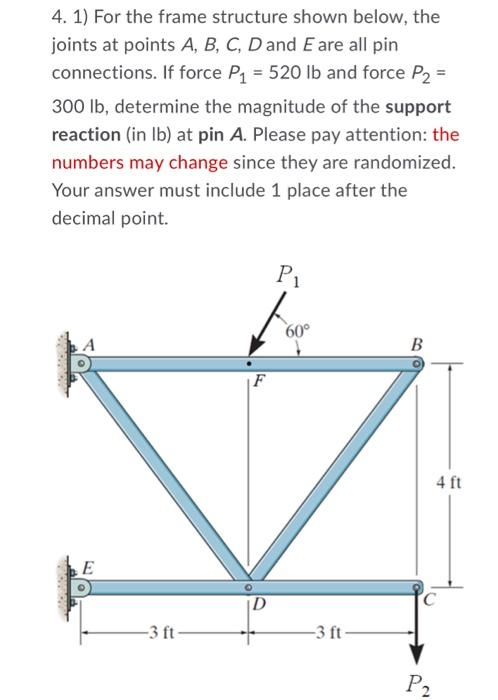

4.1) For the frame structure shown below, the joints at points A, B, C, D and E are all pin connections. If force P1 = 520 lb and force P2 = 300 lb, determine the magnitude of the support reaction (in lb) at pin A. Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point. Pi А B F 4 ft E D с -3 ft -3 ft P2

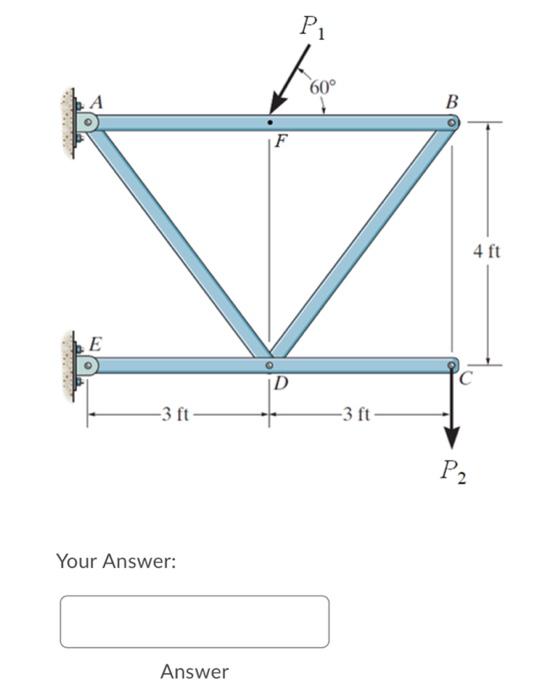

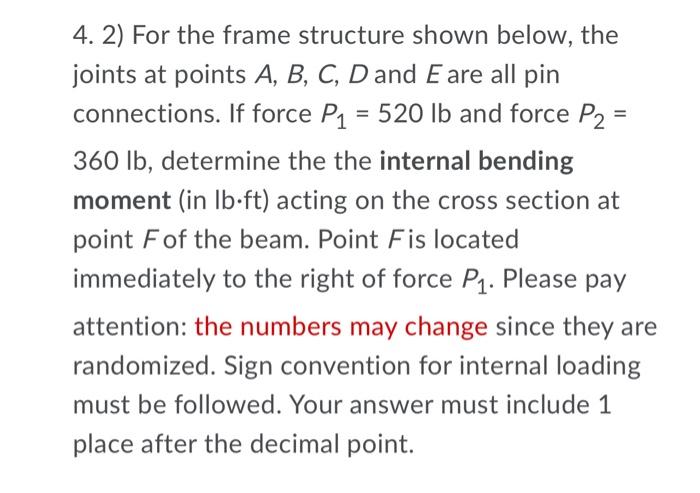

= 4.2) For the frame structure shown below, the joints at points A, B, C, D and Eare all pin connections. If force P1 = 520 lb and force P2 = 360 lb, determine the the internal bending moment (in Ib.ft) acting on the cross section at point Fof the beam. Point Fis located immediately to the right of force P1. Please pay attention: the numbers may change since they are randomized. Sign convention for internal loading must be followed. Your answer must include 1 place after the decimal point.
Pi 60° B F 4 ft E D -3 ft -3 ft P2 Your Answer: Answer
