3. 2) The truss structure is supported by two pins at A and B. If the applied force Pa = 460 N, and P2 = 780 N, what is

Post by answerhappygod »

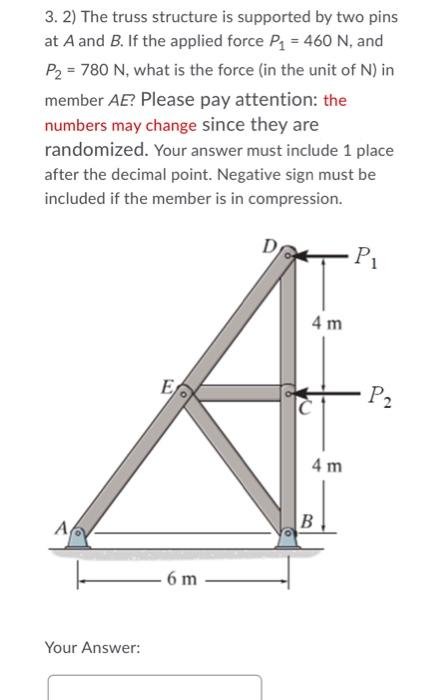

3 2 The Truss Structure Is Supported By Two Pins At A And B If The Applied Force Pa 460 N And P2 780 N What Is 1
3 2 The Truss Structure Is Supported By Two Pins At A And B If The Applied Force Pa 460 N And P2 780 N What Is 1 (31.91 KiB) Viewed 55 times
3. 2) The truss structure is supported by two pins at A and B. If the applied force Pa = 460 N, and P2 = 780 N, what is the force (in the unit of N) in member AE? Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point. Negative sign must be included if the member is in compression. P1 4 m ES P2 4 m A6 B 6 m Your Answer:
