Unsymmetric beam bending: Find the neutral axis direction. AND show that the maximum stresses in the beam are a. Tensile

Post by answerhappygod »

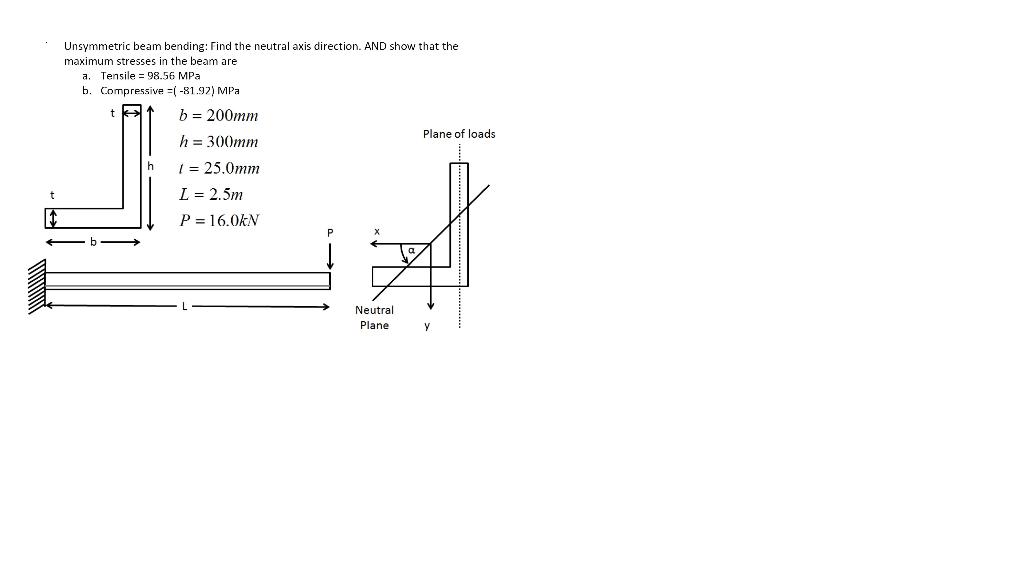

Unsymmetric Beam Bending Find The Neutral Axis Direction And Show That The Maximum Stresses In The Beam Are A Tensile 1
Unsymmetric Beam Bending Find The Neutral Axis Direction And Show That The Maximum Stresses In The Beam Are A Tensile 1 (28.48 KiB) Viewed 58 times
Unsymmetric beam bending: Find the neutral axis direction. AND show that the maximum stresses in the beam are a. Tensile = 98.56 MPa b. Compressive =( -81.92) MPa b= 200mm Plane of loads h = 300mm 1 = 25.0mm JE L = 2.5m P = 16.0KN Neutral Plane Y
