PROBLEM 2: For the beam (A-36 Steel, Wide Flange, l=272 in 4, S560 in^3) as shown below, using two element approximation

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

PROBLEM 2: For the beam (A-36 Steel, Wide Flange, l=272 in 4, S560 in^3) as shown below, using two element approximation

Post by answerhappygod »

Problem 2 For The Beam A 36 Steel Wide Flange L 272 In 4 S560 In 3 As Shown Below Using Two Element Approximation 1
Problem 2 For The Beam A 36 Steel Wide Flange L 272 In 4 S560 In 3 As Shown Below Using Two Element Approximation 1 (268.78 KiB) Viewed 48 times

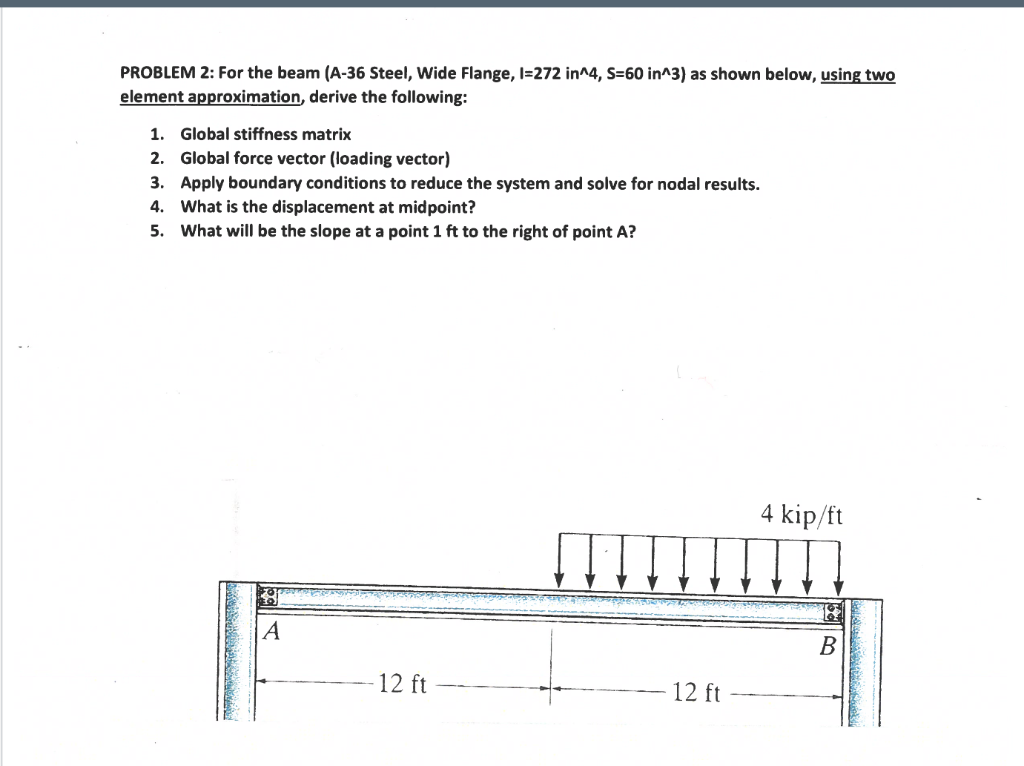

PROBLEM 2: For the beam (A-36 Steel, Wide Flange, l=272 in 4, S560 in^3) as shown below, using two element approximation, derive the following: 1. Global stiffness matrix 2. Global force vector (loading vector) 3. Apply boundary conditions to reduce the system and solve for nodal results. 4. What is the displacement at midpoint? 5. What will be the slope at a point 1 ft to the right of point A? 4 kip/ft A B 12 ft 12 ft
