23. Given the graph below, identify the operating flow and operating head of the selected pump 110 90 100 90 80 80 70 70

[answerhappygod]

23 Given The Graph Below Identify The Operating Flow And Operating Head Of The Selected Pump 110 90 100 90 80 80 70 70 1 (63.84 KiB) Viewed 64 times

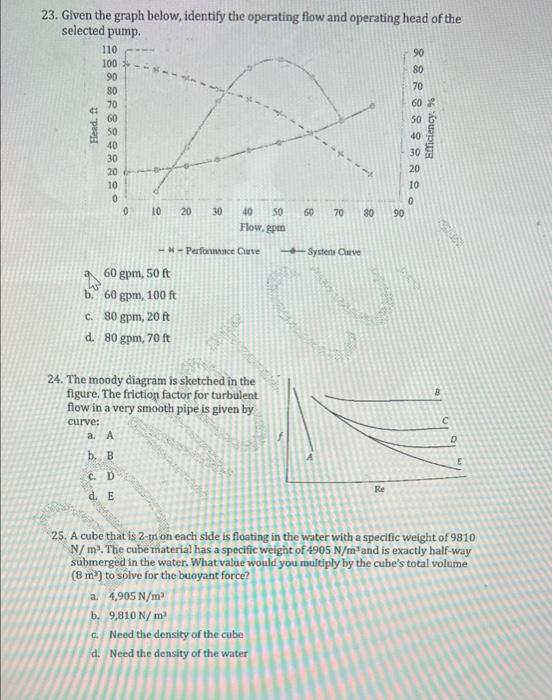

23. Given the graph below, identify the operating flow and operating head of the selected pump 110 90 100 90 80 80 70 70 60 60 50 40 40 30 30 20 20 10 10 Head. 8888888 Efficiency, 96 0 0 10 20 30 40 SO 60 70 90 Flow.open * -Performance Curve Systen Chave 60 gpm, 50 ft b. 60 gpm, 100 ft C. 80 gpm, 20 ft d. 80 gpm, 70 ft 24. The moody diagram is sketched in the figure. The friction factor for turbulent flow in a very smooth pipe is given by 1 curve: a. A b. B C D Re dE 25. A cube that is 2-m on each side is floating in the water with a specific weight of 9810 N/m. The cube material has a specific weight of 4905 N/m and is exactly half-way submerged in the water. What value would you multiply by the cube's total volume (8 m) to solve for the buoyant force? a. 4,905 N/m b. 9,810 N/m c. Need the density of the cube d. Need the density of the water
