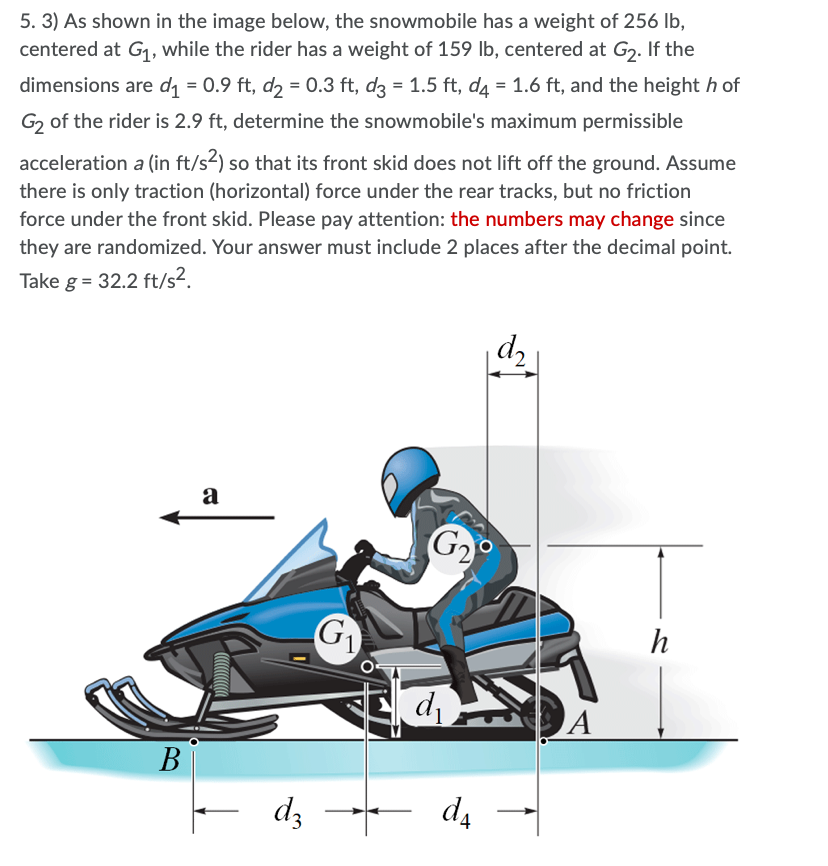

5.3) As shown in the image below, the snowmobile has a weight of 256 lb, centered at G1, while the rider has a weight of 159 lb, centered at G2. If the dimensions are dy = 0.9 ft, d2 = 0.3 ft, dz = 1.5 ft, d4 = 1.6 ft, and the height h of G2 of the rider is 2.9 ft, determine the snowmobile's maximum permissible acceleration a (in ft/s2) so that its front skid does not lift off the ground. Assume there is only traction (horizontal) force under the rear tracks, but no friction force under the front skid. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Take g = 32.2 ft/s2. dz a G2 G] h O d A B dz + de

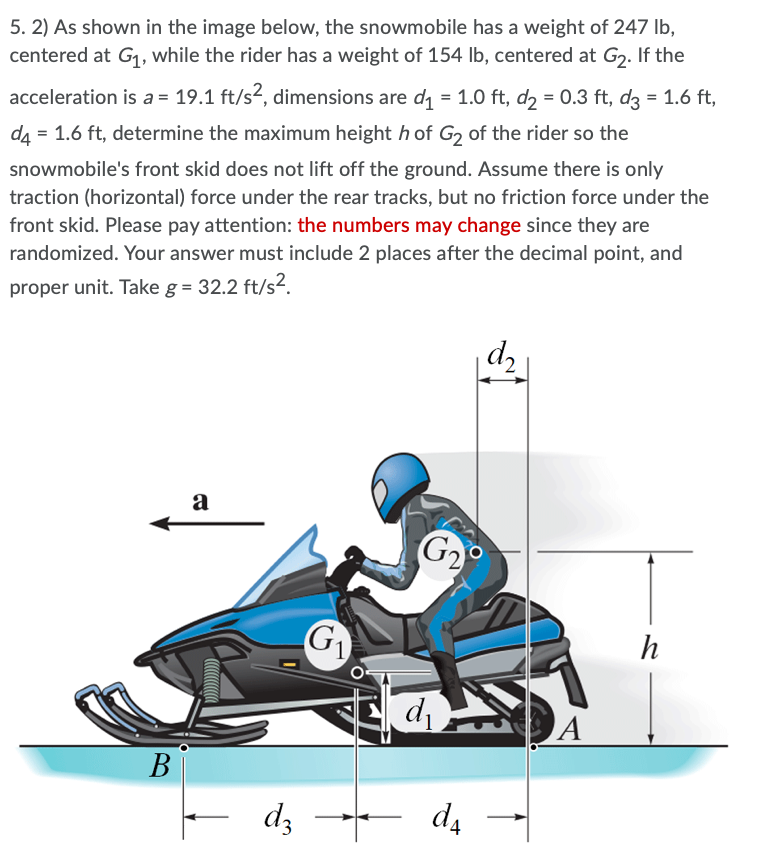

5. 2) As shown in the image below, the snowmobile has a weight of 247 lb, centered at G1, while the rider has a weight of 154 lb, centered at G2. If the acceleration is a = 19.1 ft/s2, dimensions are di = 1.0 ft, d2 = 0.3 ft, dz = 1.6 ft, 04 = 1.6 ft, determine the maximum height hof G2 of the rider so the snowmobile's front skid does not lift off the ground. Assume there is only traction (horizontal) force under the rear tracks, but no friction force under the front skid. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point, and proper unit. Take g = 32.2 ft/s2. dz а G2 G] h di A B dz - d -- da
