Required Information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A 220-kg uniform rectangular plate is supported in the position shown in the figure by hinges A and Band by a cable DCE that passes over a frictionless hook at C. Assume that the tension is the same in both parts of the cable and that hinge 8 does not exert any axial thrust.

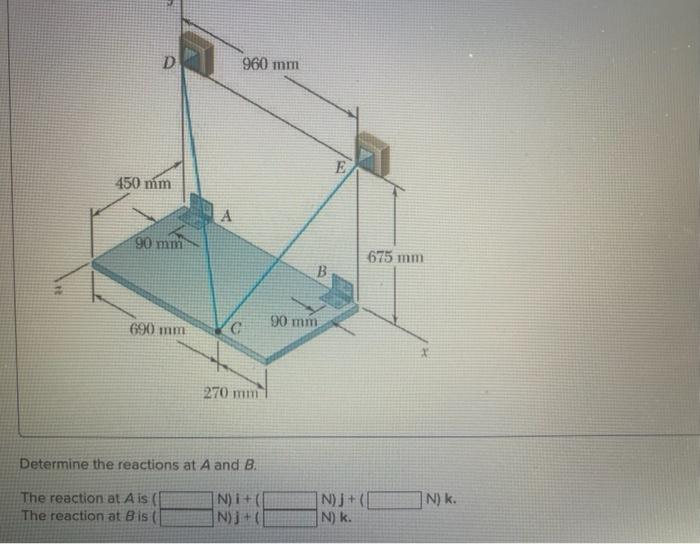

D 960 mm E 450 mm A 90 mm 675 mm B. 90 mm 690 mm C 270 mm Determine the reactions at A and B. The reaction at Ais ( The reaction at Bis N) 1+ N)] + N)]+( N) k. N) k.
