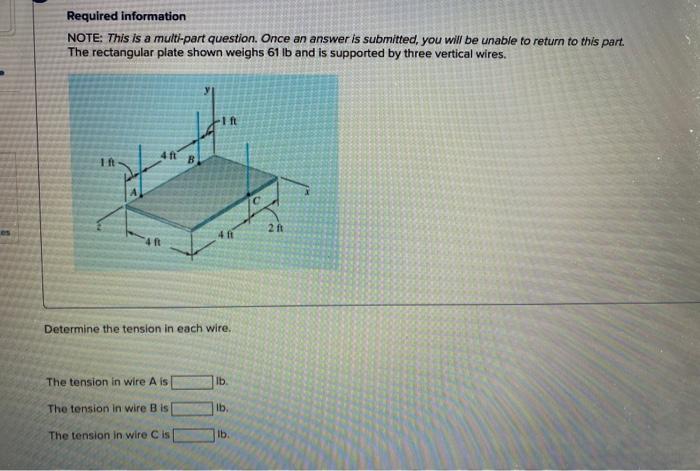

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The rectangular plate shown weighs 61 lb and is supported by three vertical wires. If 4 1 ft B 2 ft 4 ft Determine the tension in each wire. The tension in wire A is Ib. The tension in wire B is ib The tension in wire is Ib.

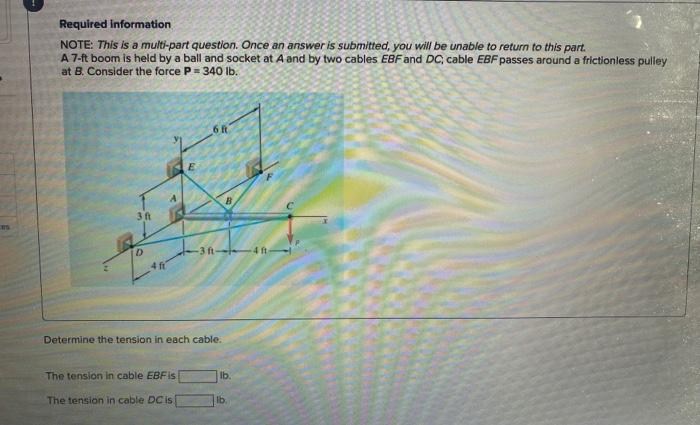

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part A 7-ft boom is held by a ball and socket at A and by two cables EBF and DC cable EBF passes around a frictionless pulley at B. Consider the force P = 340 lb. 6 E 3 -411 4 ft Determine the tension in each cable. The tension in cable EBFis Ib. The tension in cable DC is lb
