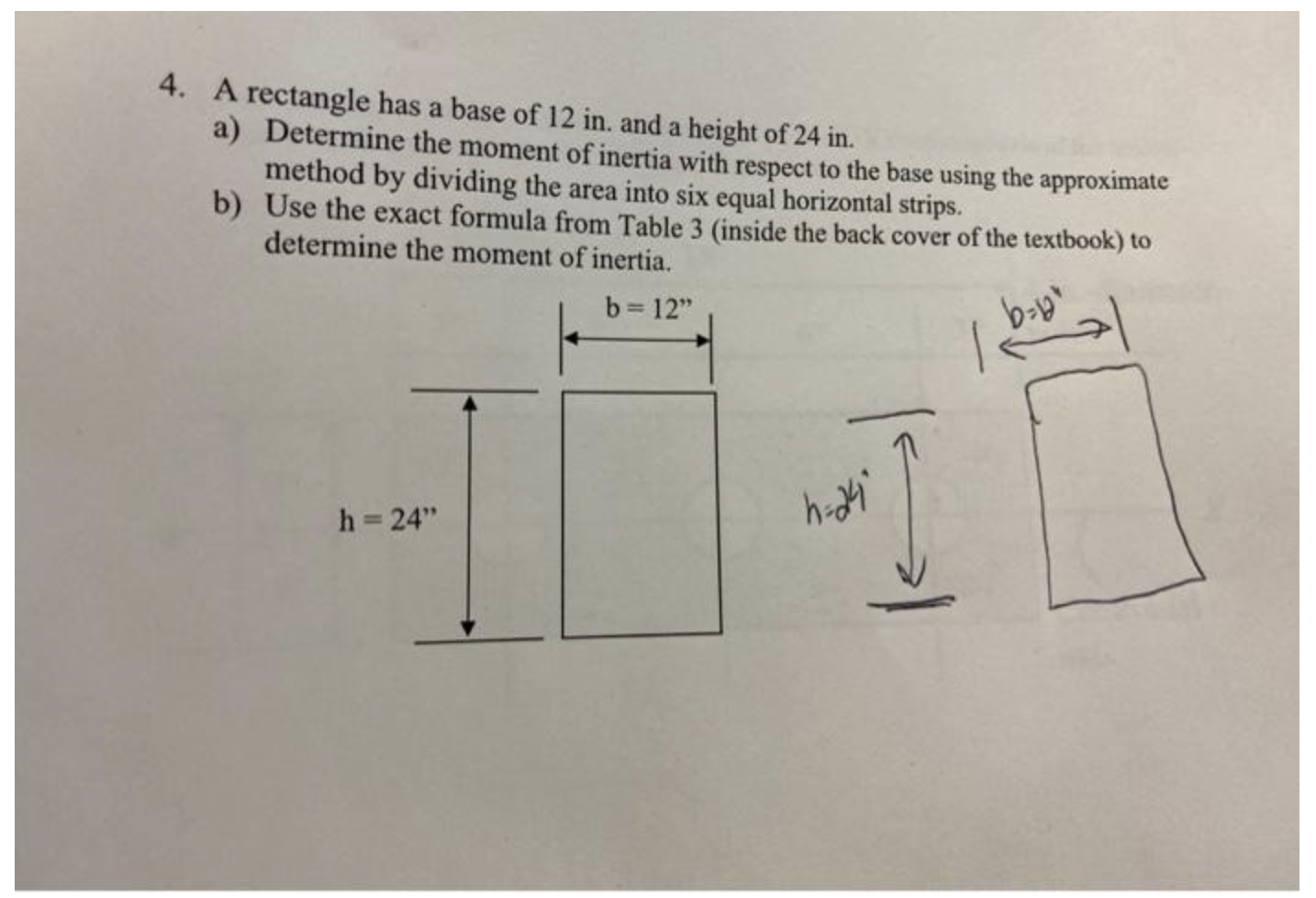

4. A rectangle has a base of 12 in. and a height of 24 in. a) Determine the moment of inertia with respect to the base using the approximate method by dividing the area into six equal horizontal strips. b) Use the exact formula from Table 3 (inside the back cover of the textbook) to determine the moment of inertia. b= 12" b=12 h = 24" h=24
