1. The state of strain at the point on the arm has components of Ex=180 (10-), ey =-275 (10), and Yay = 380(10-). Use th
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. The state of strain at the point on the arm has components of Ex=180 (10-), ey =-275 (10), and Yay = 380(10-). Use th

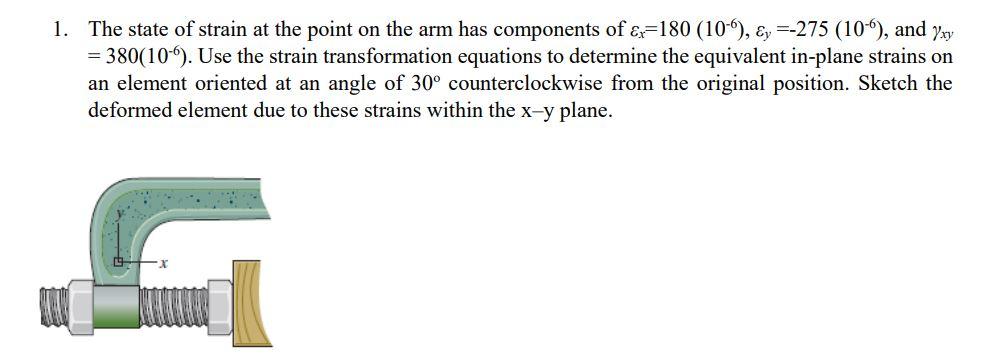

1. The state of strain at the point on the arm has components of Ex=180 (10-), ey =-275 (10), and Yay = 380(10-). Use the strain transformation equations to determine the equivalent in-plane strains on an element oriented at an angle of 30° counterclockwise from the original position. Sketch the deformed element due to these strains within the x-y plane.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
