2. The system below has a hollow, A36 steel shaft with outer diameter of 4 in. and an inside diameter of 2 in. a) What i

Post by answerhappygod »

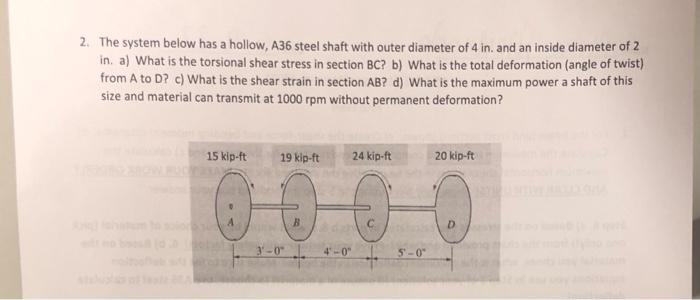

2 The System Below Has A Hollow A36 Steel Shaft With Outer Diameter Of 4 In And An Inside Diameter Of 2 In A What I 1
2 The System Below Has A Hollow A36 Steel Shaft With Outer Diameter Of 4 In And An Inside Diameter Of 2 In A What I 1 (23.62 KiB) Viewed 48 times
2. The system below has a hollow, A36 steel shaft with outer diameter of 4 in. and an inside diameter of 2 in. a) What is the torsional shear stress in section BC? b) What is the total deformation (angle of twist) from A to D? c) What is the shear strain in section AB? d) What is the maximum power a shaft of this size and material can transmit at 1000 rpm without permanent deformation? 15 kip-ft 19 kip-ft 24 kip-ft 20 kip-ft 000 D 3-09 4'-0" 50"
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
