2. Please calculate the lift force, the optimal angle of attack, and drag force for the airfoil listed in the attached c

Post by **answerhappygod** » Mon May 16, 2022 5:46 am

: 2 Please Calculate The Lift Force The Optimal Angle Of Attack And Drag Force For The Airfoil Listed In The Attached C 1 (23.37 KiB) Viewed 39 times

The angle of attack has to be calculated.

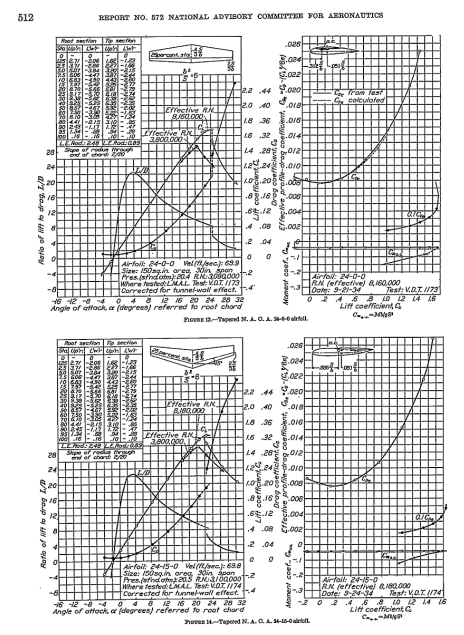

: 2 Please Calculate The Lift Force The Optimal Angle Of Attack And Drag Force For The Airfoil Listed In The Attached C 2 (189.68 KiB) Viewed 39 times

2. Please calculate the lift force, the optimal angle of attack, and drag force for the airfoil listed in the attached chart from NACA Report 572, (24-0-0). The chord length is 1 m, the span is 15 m, and the air velocity is 120 m/s. The total weight of the plane is 5,000 lbf.
