Use Matlab To Create The Required Bode Plots 1 Design A Lead Compensator For The System Below The Ramp Error Constant 1 (16.54 KiB) Viewed 48 times
solution
Use Matlab To Create The Required Bode Plots 1 Design A Lead Compensator For The System Below The Ramp Error Constant 2 (10.64 KiB) Viewed 48 times

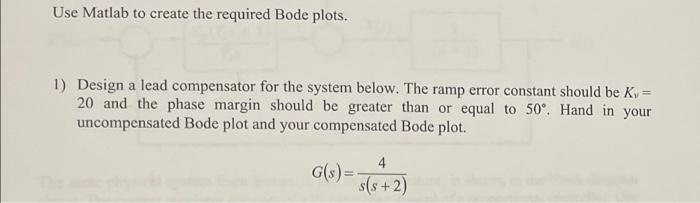

Use Matlab to create the required Bode plots. 1) Design a lead compensator for the system below. The ramp error constant should be K) = 20 and the phase margin should be greater than or equal to 50°. Hand in your uncompensated Bode plot and your compensated Bode plot. 4 G(s)= s(s+2)
s+4.39 G.(s) = 40.16 S +17.64
