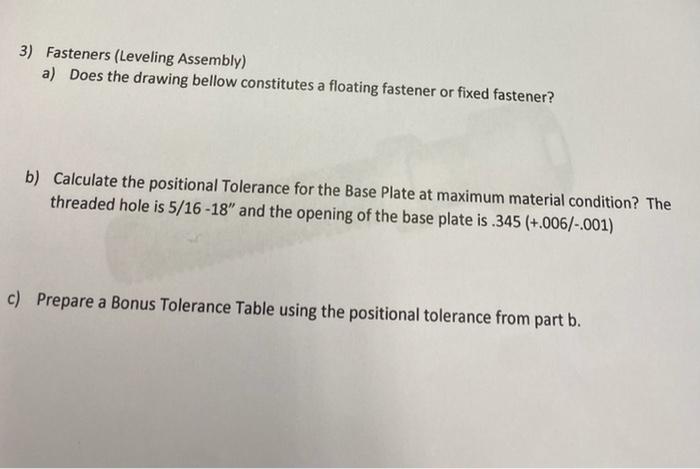

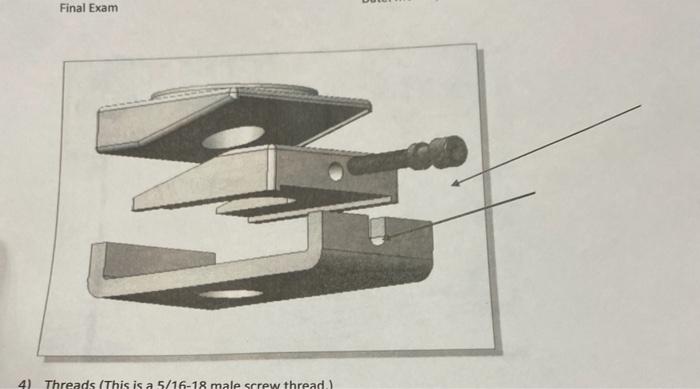

3) Fasteners (Leveling Assembly) a) Does the drawing bellow constitutes a floating fastener or fixed fastener? b) Calculate the positional Tolerance for the Base Plate at maximum material condition? The threaded hole is 5/16-18" and the opening of the base plate is.345 (+.006/-.001) c) Prepare a Bonus Tolerance Table using the positional tolerance from part b.
Final Exam 들 4) Threads (This is a 5/16-18 male screw thread.)
