2. [6 pts] Consider the nice picture of rib-joint pliers. The pliers are used to grip the smooth pipe C. A force of 150

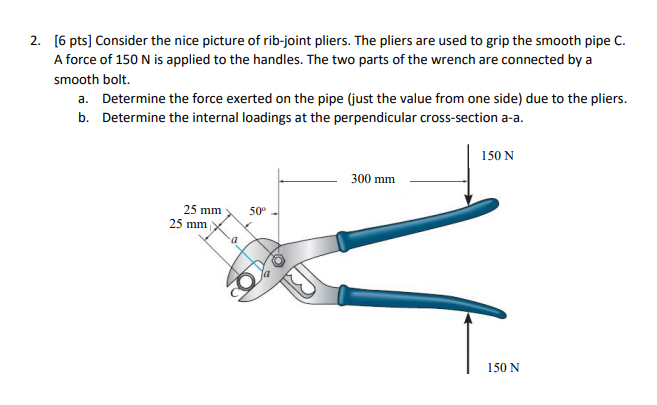

2. [6 pts] Consider the nice picture of rib-joint pliers. The pliers are used to grip the smooth pipe C. A force of 150 N is applied to the handles. The two parts of the wrench are connected by a smooth bolt. a. Determine the force exerted on the pipe (just the value from one side) due to the pliers. b. Determine the internal loadings at the perpendicular cross-section a-a. 150 N 300 mm 50° 25 mm 25 mm a 150N
