Consider the beam shown in (Figure 1). The roller at A and the pin at B can support a load up to 3.7 kN and 8.8 kN - res

[answerhappygod]

Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 7 Kn And 8 8 Kn Res 1 (26.7 KiB) Viewed 49 times

Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 7 Kn And 8 8 Kn Res 2 (18.29 KiB) Viewed 49 times

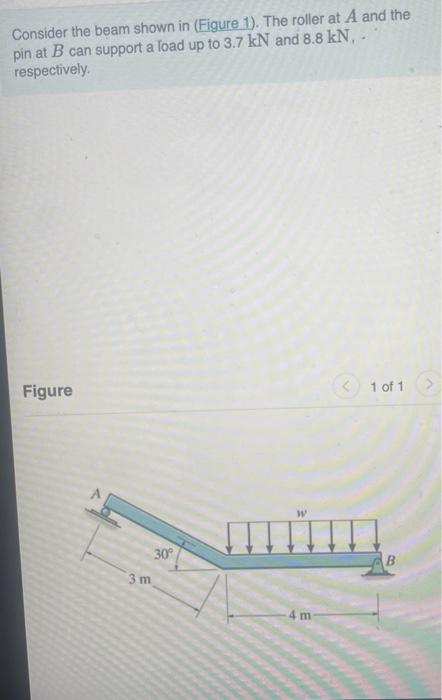

Consider the beam shown in (Figure 1). The roller at A and the pin at B can support a load up to 3.7 kN and 8.8 kN - respectively. Figure < 1 of 1 w 30 3 m 4 m

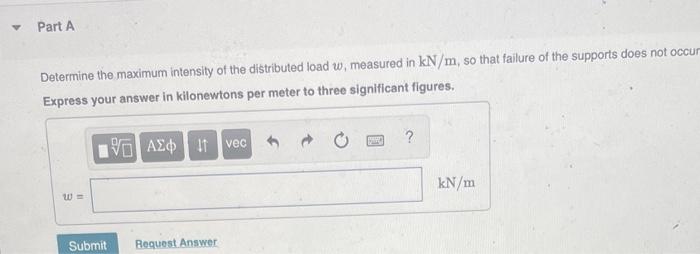

Part A Determine the maximum intensity of the distributed load w, measured in kN/m, so that failure of the supports does not occur Express your answer in kilonewtons per meter to three significant figures. ? PO AXO 11 vec kN/m w Submit Request Answer
