A hollow structural steel flexural member is subjected to the load shown. Determine the normal and shear stresses acting

Post by answerhappygod »

A Hollow Structural Steel Flexural Member Is Subjected To The Load Shown Determine The Normal And Shear Stresses Acting 1
A Hollow Structural Steel Flexural Member Is Subjected To The Load Shown Determine The Normal And Shear Stresses Acting 1 (139.06 KiB) Viewed 36 times

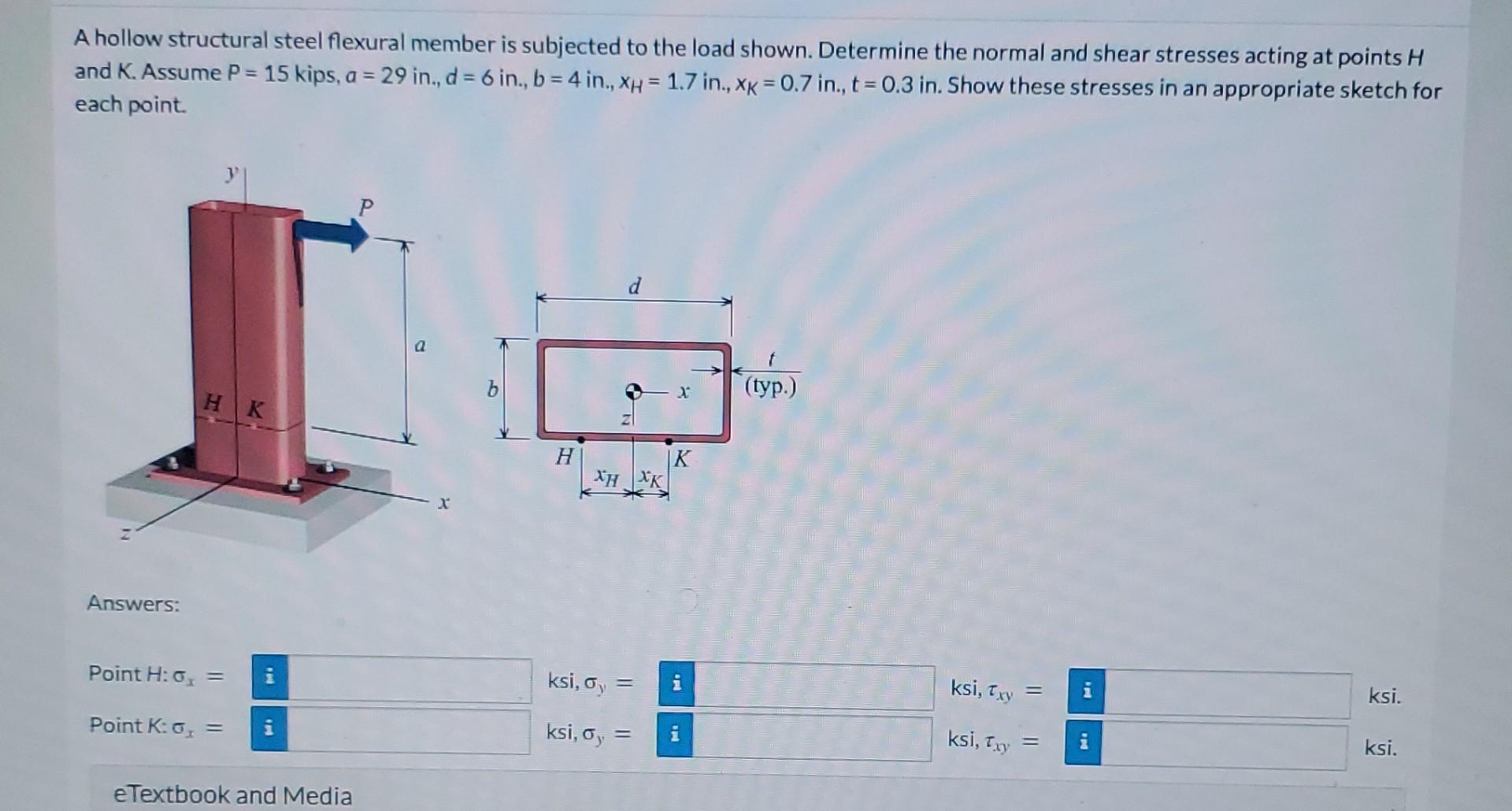

A hollow structural steel flexural member is subjected to the load shown. Determine the normal and shear stresses acting at points H and K. Assume P = 15 kips, a = 29 in., d = 6 in., b = 4 in., XH = 1.7 in., XK = 0.7 in., t = 0.3 in. Show these stresses in an appropriate sketch for each point. 1 Р d a 6 x (typ.) HK H K Xн хк Answers: Point H: 0 = ksi, = pl ksi, T xy = ksi. Point K: 0,= ksi, o = i ksi, tuy ON ksi. e Textbook and Media
