a 3. In the gear box shown below, the gears have a diametral pitch of 6 teeth/in, a 20 pressure angle, and the following
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
a 3. In the gear box shown below, the gears have a diametral pitch of 6 teeth/in, a 20 pressure angle, and the following

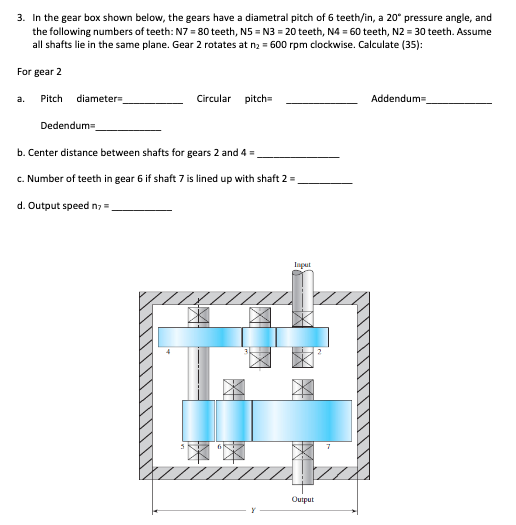

a 3. In the gear box shown below, the gears have a diametral pitch of 6 teeth/in, a 20 pressure angle, and the following numbers of teeth: N7 = 80 teeth, N5 = N3 = 20 teeth, N4 = 60 teeth, N2 = 30 teeth. Assume all shafts lie in the same plane. Gear 2 rotates at n2 = 600 rpm clockwise. Calculate (35): For gear 2 Pitch diameter Circular pitch- Addendum a. Dedendum= b. Center distance between shafts for gears 2 and 4 = c. Number of teeth in gear 6 if shaft 7 is lined up with shaft 2 = d. Output speed n; Input Output
