T Problem 1. A cylindrical vessel is under a pressure of 5 KPa and a Torque of 10kN.m , the inner radius is 6m and the t

[answerhappygod]

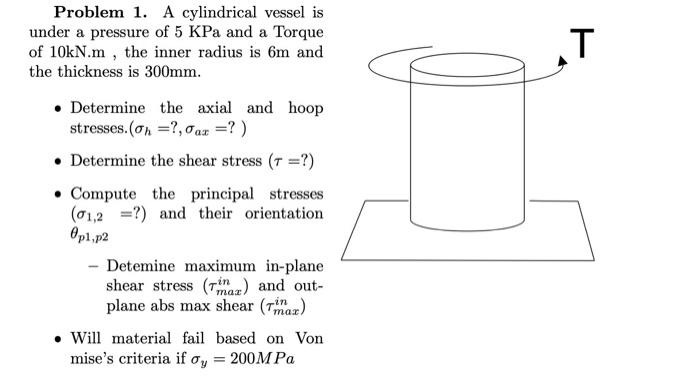

T Problem 1 A Cylindrical Vessel Is Under A Pressure Of 5 Kpa And A Torque Of 10kn M The Inner Radius Is 6m And The T 1 (32.08 KiB) Viewed 29 times

T Problem 1. A cylindrical vessel is under a pressure of 5 KPa and a Torque of 10kN.m , the inner radius is 6m and the thickness is 300mm. • Determine the axial and hoop stresses. (on =?, ax =? ) • Determine the shear stress (r =?) • Compute the principal stresses (01,2 =?) and their orientation Op1,p2 - Detemine maximum in-plane shear stress (inaz) and out- plane abs max shear (max) . Will material fail based on Von mise's criteria if oy = 200M Pa
