Problem 2 An overhanged beam is given. Let El be constant. The cross section is rectangular with dimensions b and h. W W

Post by answerhappygod »

Problem 2 An Overhanged Beam Is Given Let El Be Constant The Cross Section Is Rectangular With Dimensions B And H W W 1
Problem 2 An Overhanged Beam Is Given Let El Be Constant The Cross Section Is Rectangular With Dimensions B And H W W 1 (25.67 KiB) Viewed 33 times

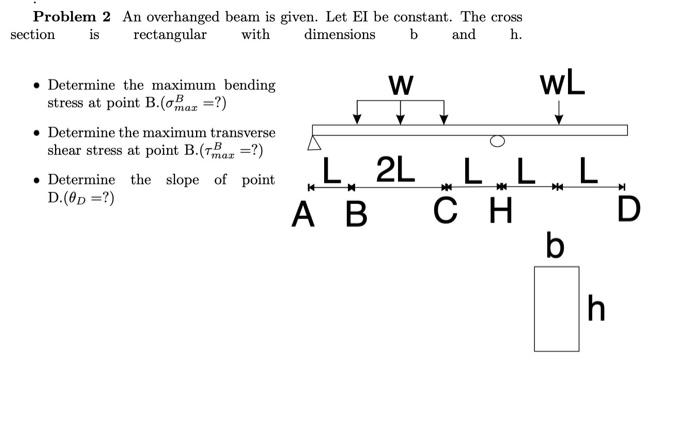

Problem 2 An overhanged beam is given. Let El be constant. The cross section is rectangular with dimensions b and h. W WL • Determine the maximum bending stress at point B.(mar =?) • Determine the maximum transverse shear stress at point B.(mar =?) • Determine the slope of point D.(Op =?) L. 2L LL. A B CH L D b h
