Problem 1. A cylindrical vessel is under a pressure of 5 KPa and a Torque of 10kN.m , the inner radius is 6m and the thi

Post by answerhappygod »

Problem 1 A Cylindrical Vessel Is Under A Pressure Of 5 Kpa And A Torque Of 10kn M The Inner Radius Is 6m And The Thi 1
Problem 1 A Cylindrical Vessel Is Under A Pressure Of 5 Kpa And A Torque Of 10kn M The Inner Radius Is 6m And The Thi 1 (92.95 KiB) Viewed 44 times

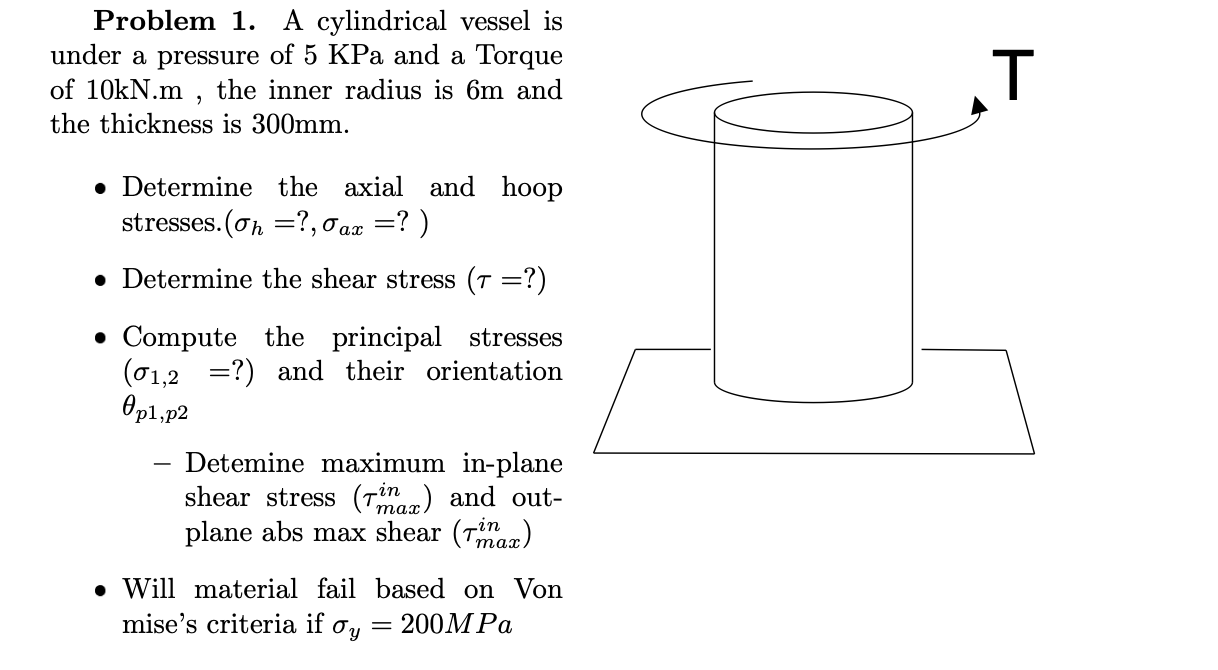

Problem 1. A cylindrical vessel is under a pressure of 5 KPa and a Torque of 10kN.m , the inner radius is 6m and the thickness is 300mm. T • Determine the axial and hoop stresses.(on =?,0ax =? ) • Determine the shear stress (1 =?) . Compute the principal stresses (01,2 =?) and their orientation 0p1,p2 Detemine maximum in-plane shear stress (Tinax) and out- plane abs max shear (Timax) тах тах • Will material fail based on Von mise's criteria if oy = 200MPa
