Item 3 Consider the beam shown in (Figure 1). The roller at A and the pin at B can support a load up to 3.8 kN and 8.3 k

Post by answerhappygod »

Item 3 Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 8 Kn And 8 3 K 1
Item 3 Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 8 Kn And 8 3 K 1 (21.05 KiB) Viewed 53 times
Item 3 Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 8 Kn And 8 3 K 2
Item 3 Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 8 Kn And 8 3 K 2 (22.11 KiB) Viewed 53 times

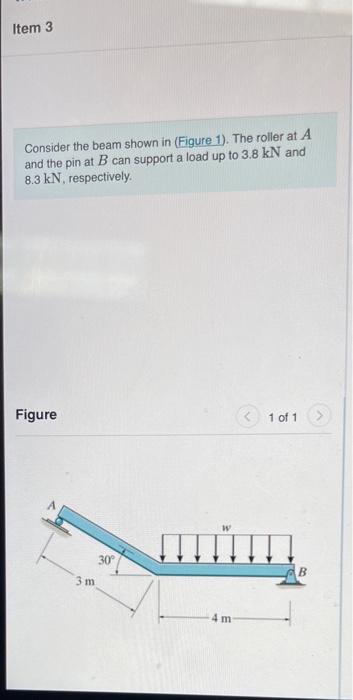

Item 3 Consider the beam shown in (Figure 1). The roller at A and the pin at B can support a load up to 3.8 kN and 8.3 kN, respectively. Figure 1 of 1 30 B 3 m 4 m

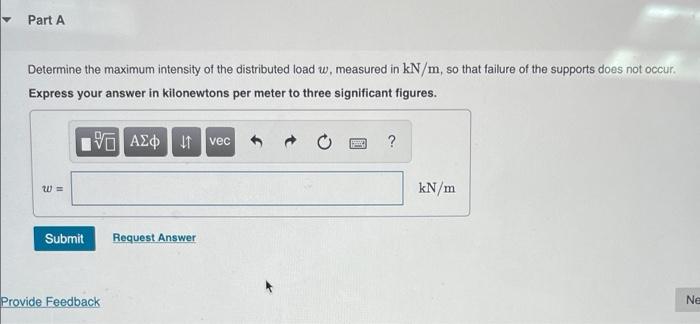

Part A Determine the maximum intensity of the distributed load w, measured in kN/m, so that failure of the supports does not occur. Express your answer in kilonewtons per meter to three significant figures. 0 AED 11 vec ? W = kN/m Submit Request Answer Provide Feedback Ne
