12.22 Hydrogen flows from a reservoir where the temperature is 20°C and the pressure is 500 kPa absolute to a section 2

Post by answerhappygod »

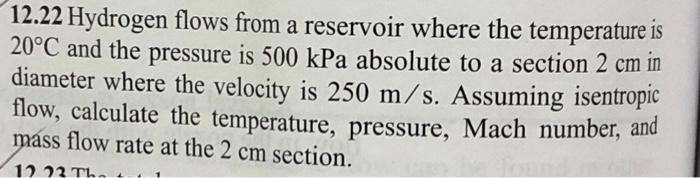

12 22 Hydrogen Flows From A Reservoir Where The Temperature Is 20 C And The Pressure Is 500 Kpa Absolute To A Section 2 1
12 22 Hydrogen Flows From A Reservoir Where The Temperature Is 20 C And The Pressure Is 500 Kpa Absolute To A Section 2 1 (28.08 KiB) Viewed 27 times
12.22 Hydrogen flows from a reservoir where the temperature is 20°C and the pressure is 500 kPa absolute to a section 2 cm in diameter where the velocity is 250 m/s. Assuming isentropic flow, calculate the temperature, pressure, Mach number, and mass flow rate at the 2 cm section. 1222 TL
