Question 4, all parts. please make answers clear. will give a thumbs up if correct.

Post by **answerhappygod** » Sun May 15, 2022 11:54 pm

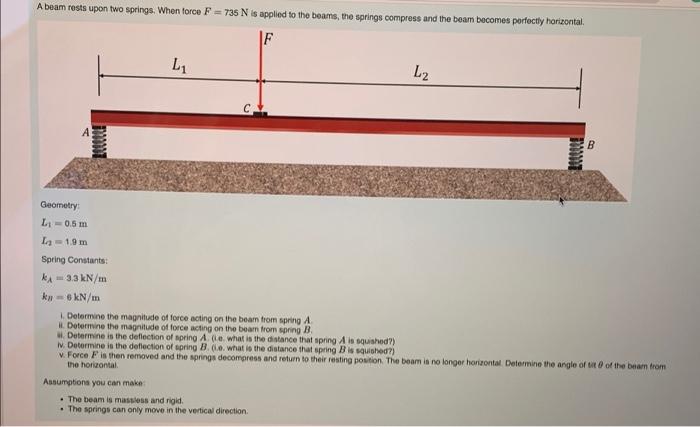

: Question 4 All Parts Please Make Answers Clear Will Give A Thumbs Up If Correct 1 (31.28 KiB) Viewed 43 times

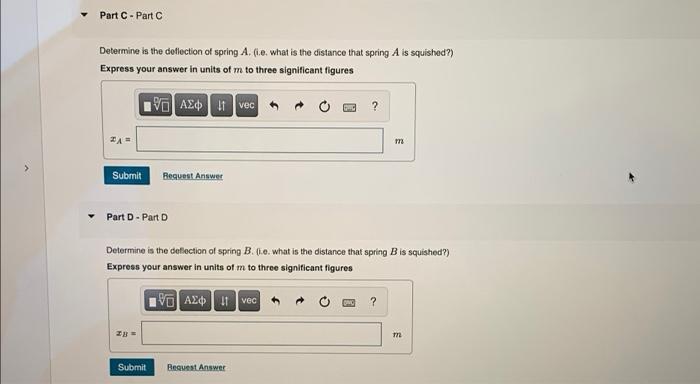

: Question 4 All Parts Please Make Answers Clear Will Give A Thumbs Up If Correct 2 (23.42 KiB) Viewed 43 times

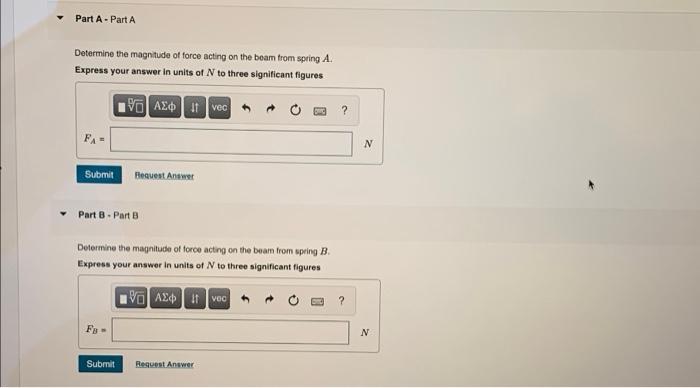

: Question 4 All Parts Please Make Answers Clear Will Give A Thumbs Up If Correct 3 (23.63 KiB) Viewed 43 times

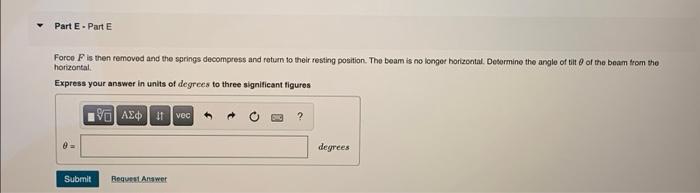

: Question 4 All Parts Please Make Answers Clear Will Give A Thumbs Up If Correct 4 (12.44 KiB) Viewed 43 times

A beam rests upon two springs. When force F = 735 N is applied to the beams, the springs compress and the beam becomes porfectly horizontal F Li L2 B Geometry L0.5 m I 1.9 m Spring Constants: KA -3.3 kN/m kykN/m Determine the magnitude of force acting on the beam from spring A Determine the magnitude of force acting on the bear from spring B Determine is the detection of spring what is the distance that spring Ai squished? Determine in the detection of spring B..what is the distance that spring Bis squished? v. Force F is then removed and the springs decompress and return to their resting position. The beam is no longer horizontal Determine the angle of or of the bear from the horizontal Assumptions you can make . The beam is massions and rigid • The springs can only move in the vertical direction
Part A - Part A Determine the magnitude of force acting on the beam from spring A. Express your answer in units of N to three significant figures ΡΟ ΑΣΦ | vec ? N 2 Submit Heavest Answer Part 8 - Part 8 Determine the magnitude of force acting on the beam from upring B. Express your answer in units of N to three significant figures ΨΗ ΑΣΦινος ? Fa > Submit Request Answer
Part - Part Determine is the detection of spring A. (ie. what is the distance that spring A is squished?) Express your answer in units of m to three significant figures Ή ΑΣΦvec ? 172 Submit Request Answer Part - Part Determine is the collection of spring B. (.e. what is the distance that spring Bis squished) Express your answer in units of m to three significant figures 90 AED vec ? m2 Submit Beavest Answer
Part E - Part E Forco F is then removed and the springs decompress and return to their resting position. The beam is no longer horizontal. Determine the angle of tit of the beam from the horizontal Express your answer in units of degrees to three significant figures 90 AECVEC = degrees Submit Request Answer
