2. Question 2 [18] A uniform rigid bar with a mass of m = 12 kg is pivoted at point O as shown in Figure 2.1. The bar is

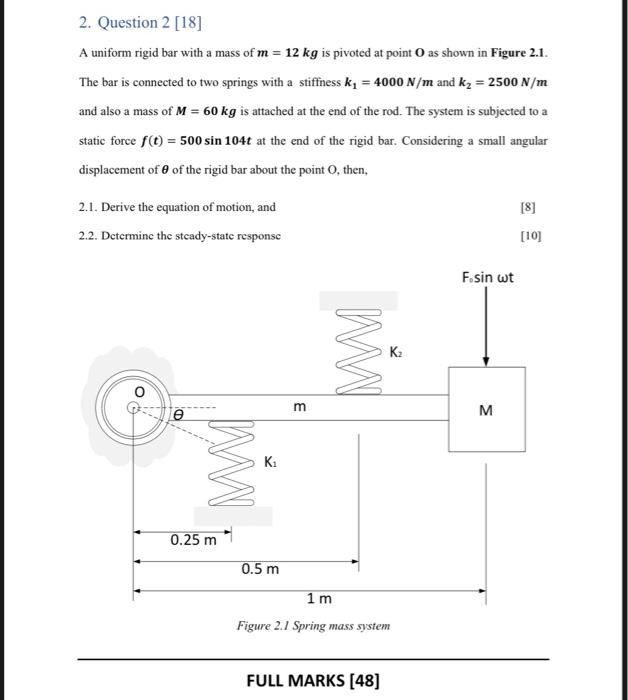

2. Question 2 [18] A uniform rigid bar with a mass of m = 12 kg is pivoted at point O as shown in Figure 2.1. The bar is connected to two springs with a stiffness k= 4000 N/m and kz = 2500 N/m and also a mass of M = 60 kg is attached at the end of the rod. The system is subjected to a static force ft) = 500 sin 104t at the end of the rigid bar. Considering a small angular displacement of of the rigid bar about the point O, then, 2.1. Derive the equation of motion, and 2.2. Determine the steady-state response [8] [10] Fosin wt ММ K E e M mis 0.25 m 0.5 m 1 m Figure 2.1 Spring mass system FULL MARKS [48]
