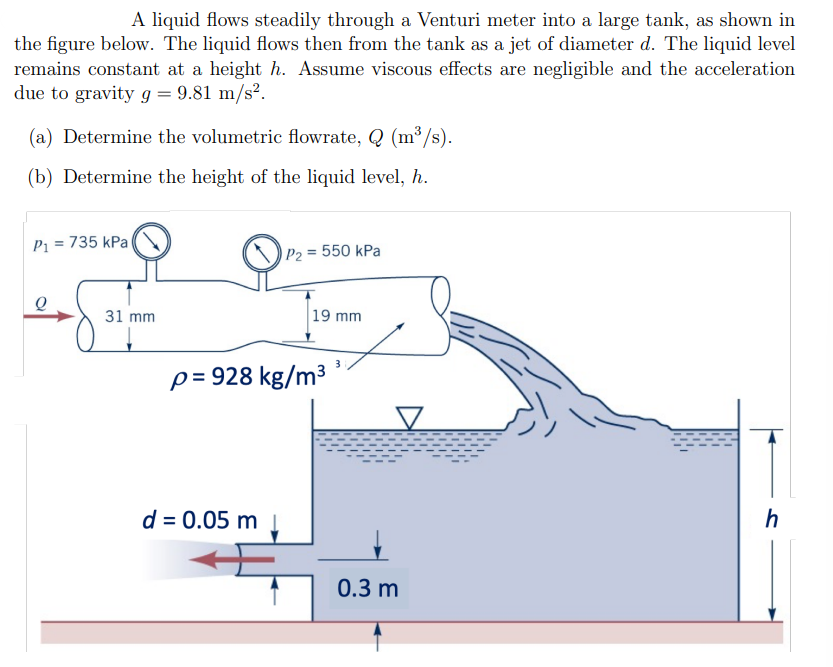

A liquid flows steadily through a Venturi meter into a large tank, as shown in the figure below. The liquid flows then from the tank as a jet of diameter d. The liquid level remains constant at a height h. Assume viscous effects are negligible and the acceleration due to gravity g = 9.81 m/s?. (a) Determine the volumetric flowrate, Q (m/s). (b) Determine the height of the liquid level, h. P1 = 735 kPa P2 = 550 kPa Q 31 mm 19 mm p=928 kg/m3 d = 0.05 m h 0.3 m
A liquid flows steadily through a Venturi meter into a large tank, as shown in the figure below. The liquid flows then from the tank as a jet of diameter d. The liquid level remains constant at a height h. Assume viscous effects are negligible and the acceleration due to gravity g = 9.81 m/s?. (a) Determine the volumetric flowrate, Q (m/s). (b) Determine the height of the liquid level, h. P1 = 735 kPa P2 = 550 kPa Q 31 mm 19 mm p=928 kg/m3 d = 0.05 m h 0.3 m
