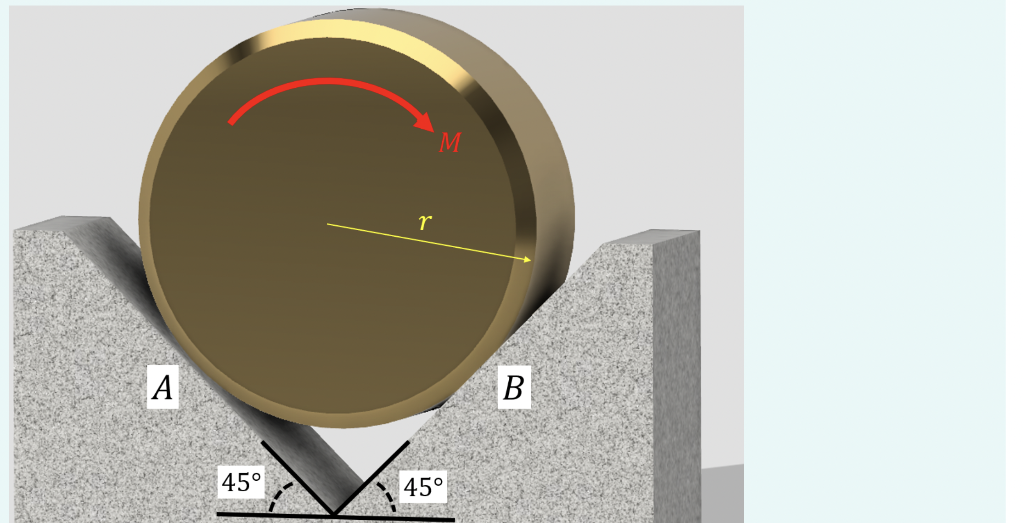

weight 412 lb sits in a right-angle groove made of
granite.
The disk makes contact with the groove
at A and B and the coefficient of static
friction at both points are μS= 0.35
A couple moment of M is applied to the disk as
shown.
- A Brass Disk Of Radius 0 5 Ft And Weight 412 Lb Sits In A Right Angle Groove Made Of Granite The Disk Makes Contact Wit 1 (555.17 KiB) Viewed 34 times
If we want to find the largest value of couple moment M before the disk begins to slip, which combination of assumptions is necessary? FA > Mg * NA & FB = Mg * NB FA <Mig * NA & FB < Mg * NB O FA = Mg* NA & FB = Ms * NB = Mg O FA > Mg* NA & FB > Ms * NB FA = Mg * NA & FB < Mg * NB = FA < Mg * NA & FB = Mg * NB FA = Mg * NA & FB > Mg * NB Submit Request Answer
Determine the largest value of couple moment M just before the disk begins to slip. Express your answer in units of lb · ft to three significant figures and include the appropriate units. V AEO It 1 vec ? M = lb·ft Submit Request Answer
At the moment before the disk begins to slip (impending motion), determine the magnitude of the normal force at point A, otherwise known as NA Express your answer in units of lb to three significant figures. IVALO vec ? NA = 16 Submit Request Answer
At the moment before the disk begins to slip (impending motion), determine the magnitude of the normal force at point B, otherwise known as NB Express your answer in units of lb to three significant figures. ΟΙ ΑΣΦ Ι 11 vec ? NB = 16 = Submit Request Answer
