2. Figure shows a manometer being used to indicate the pressure difference between two points in a fabricated system. Ca

Post by answerhappygod »

2 Figure Shows A Manometer Being Used To Indicate The Pressure Difference Between Two Points In A Fabricated System Ca 1
2 Figure Shows A Manometer Being Used To Indicate The Pressure Difference Between Two Points In A Fabricated System Ca 1 (92.42 KiB) Viewed 40 times

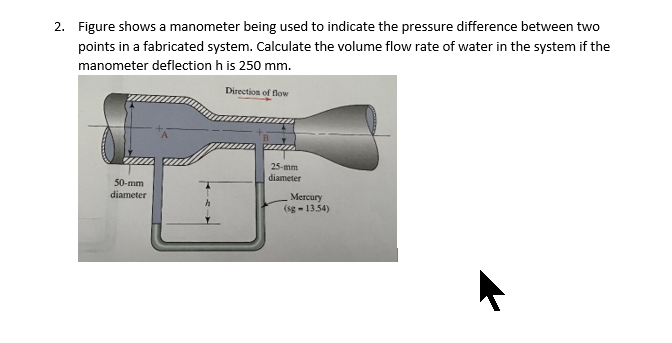

2. Figure shows a manometer being used to indicate the pressure difference between two points in a fabricated system. Calculate the volume flow rate of water in the system if the manometer deflection h is 250 mm. Direction of flow aze 25-mm diameter 50-mm diameter Mercury (sg - 13.54)
