(b) The valve train of an internal combustion engine is shown below. The loa between the cam and the follower may be det

[answerhappygod]

B The Valve Train Of An Internal Combustion Engine Is Shown Below The Loa Between The Cam And The Follower May Be Det 1 (48.09 KiB) Viewed 46 times

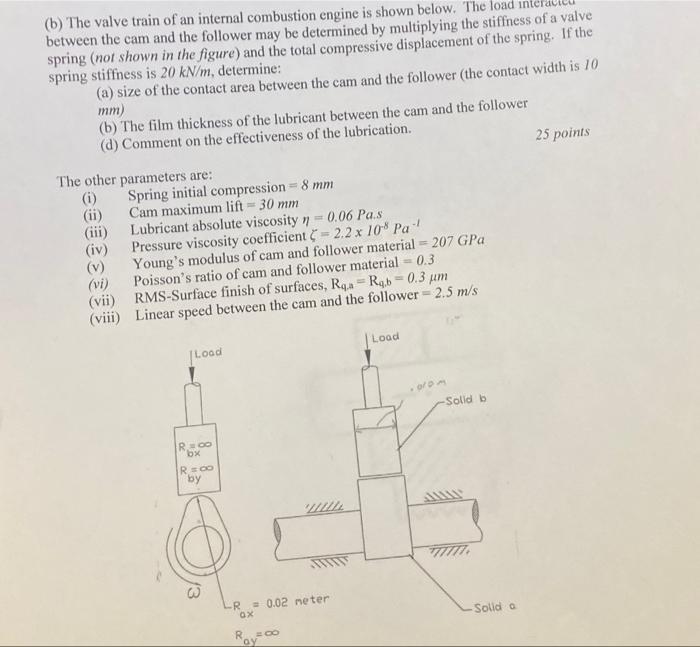

(b) The valve train of an internal combustion engine is shown below. The loa between the cam and the follower may be determined by multiplying the stiffness of a valve spring (not shown in the figure) and the total compressive displacement of the spring. If the spring stiffness is 20 kN/m, determine: (a) size of the contact area between the cam and the follower the contact width is 10 mm) (b) The film thickness of the lubricant between the cam and the follower (d) Comment on the effectiveness of the lubrication. 25 points The other parameters are: (i) Spring initial compression = 8 mm (ii) Cam maximum lift = 30 mm (iii) Lubricant absolute viscosity ? = 0.06 Pas (iv) Pressure viscosity coefficient C = 2.2 x 10 Pa (v) Young's modulus of cam and follower material = 207 GPa (vi) Poisson's ratio of cam and follower material 0.3 (vii) RMS-Surface finish of surfaces, Ren-Rob 0.3 um (viii) Linear speed between the cam and the follower = 2.5 m/s Load Load orom Solid b R 00 bx ROO by R = 0.02 meter ox Solido RECO Oy
