The gain margin and phase margin of a system shown in Figure 2. What is the maximum gain (in unitless not in db) to make

[answerhappygod]

The Gain Margin And Phase Margin Of A System Shown In Figure 2 What Is The Maximum Gain In Unitless Not In Db To Make 1 (41.23 KiB) Viewed 53 times

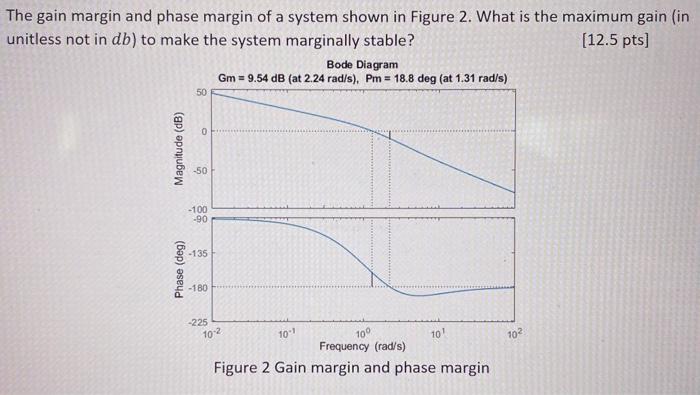

The gain margin and phase margin of a system shown in Figure 2. What is the maximum gain (in unitless not in db) to make the system marginally stable? (12.5 pts] Bode Diagram Gm = 9.54 dB (at 2.24 rad/s), Pm = 18.8 deg (at 1.31 rad/s) 50 0 Magnitude (dB) -50 -100 -90 -135 Phase (deg) - 180 -225 10-2 10 10° 100 102 Frequency (rad/s) Figure 2 Gain margin and phase margin
