Determine the dynamic equations of the 2-RR robot (Fig. 1.3) using the Lagrange approach. Note that it is sufficient if

[answerhappygod]

Determine The Dynamic Equations Of The 2 Rr Robot Fig 1 3 Using The Lagrange Approach Note That It Is Sufficient If 1 (50.95 KiB) Viewed 56 times

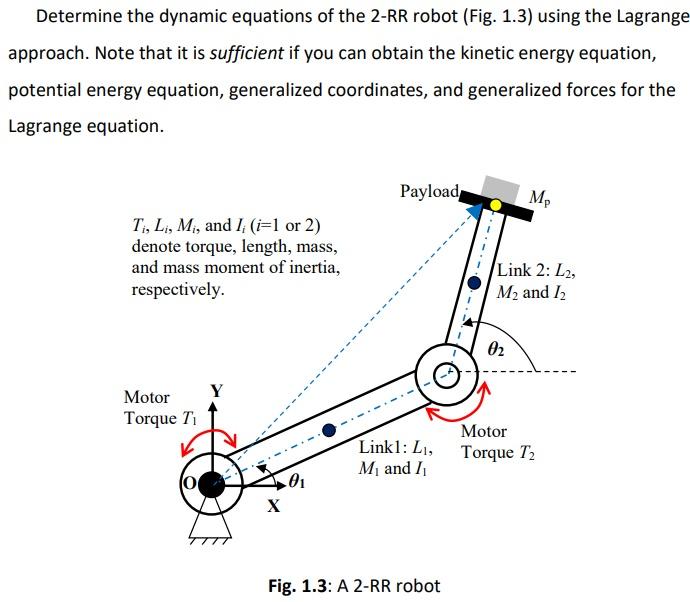

Determine the dynamic equations of the 2-RR robot (Fig. 1.3) using the Lagrange approach. Note that it is sufficient if you can obtain the kinetic energy equation, potential energy equation, generalized coordinates, and generalized forces for the Lagrange equation. Payload Me Ti, Li, M, and I; (i=1 or 2) denote torque, length, mass, and mass moment of inertia, respectively. Link 2: L2, M2 and 12 02 Y Motor Torque T Linkl: L1, M and I Motor Torque T2 0 X Fig. 1.3: A 2-RR robot
