Question-2 [2.5 Marks In a turning moment diagram, the areas above and below the mean torque line taken in order are 440

Post by answerhappygod »

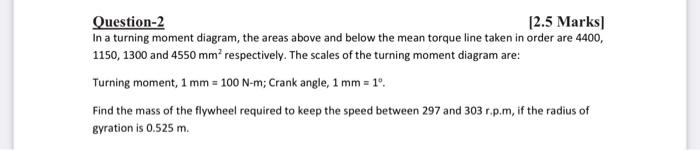

Question 2 2 5 Marks In A Turning Moment Diagram The Areas Above And Below The Mean Torque Line Taken In Order Are 440 1
Question 2 2 5 Marks In A Turning Moment Diagram The Areas Above And Below The Mean Torque Line Taken In Order Are 440 1 (15.42 KiB) Viewed 240 times
Question-2 [2.5 Marks In a turning moment diagram, the areas above and below the mean torque line taken in order are 4400, 1150, 1300 and 4550 mm respectively. The scales of the turning moment diagram are: Turning moment, 1 mm = 100 N-m; Crank angle, 1 mm = 1º. Find the mass of the flywheel required to keep the speed between 297 and 303 r.p.m, if the radius of gyration is 0.525 m.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
