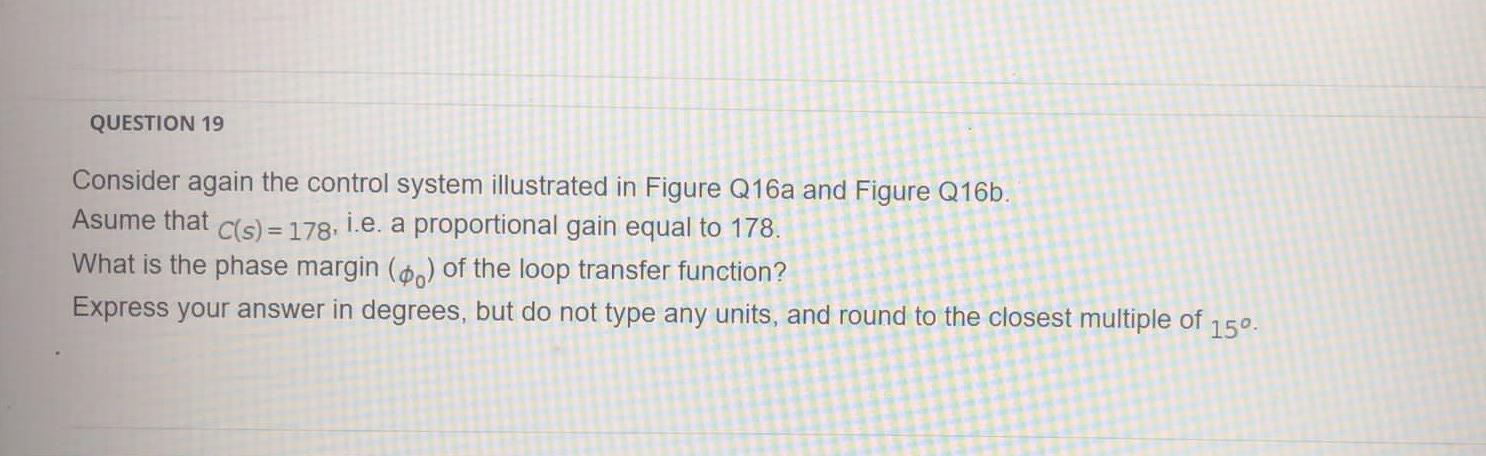

QUESTION 19 Consider again the control system illustrated in Figure Q16a and Figure Q16b. Asume that C(s) = 178 i.e. a proportional gain equal to 178. What is the phase margin (oc) of the loop transfer function? Express your answer in degrees, but do not type any units, and round to the closest multiple of 150.

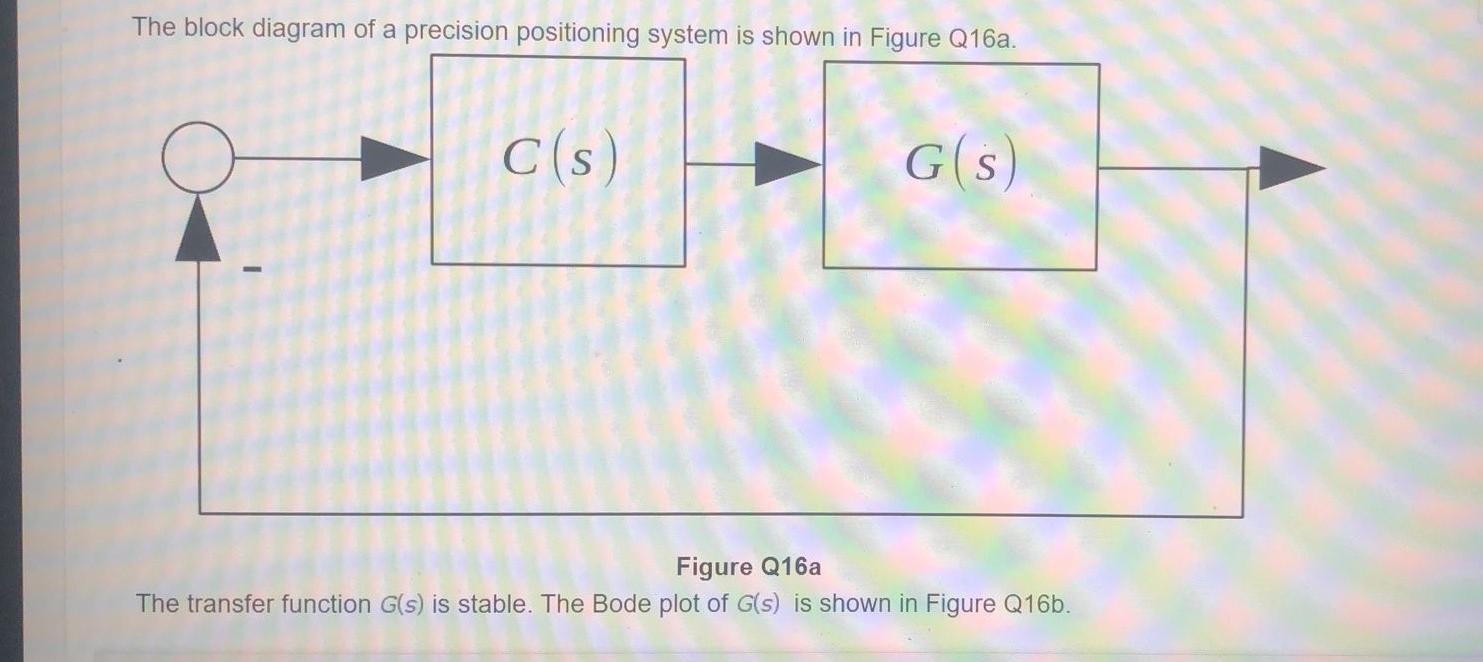

The block diagram of a precision positioning system is shown in Figure Q16a. C(s) G(s) Figure Q16a The transfer function G(s) is stable. The Bode plot of G(s) is shown in Figure Q16b.
Magnitude (dB) 30 20 10 0 -10 20 -30 -40 -50 -60 -70 -80 -90 -100 -110 -120 -130 -140 -150 - 15 -30 -45 -60 -75 -90 -105 - 120 - 135 - 150 -165 -180 -195 -210 -225 -240 -255 -270 Phase (deg) 104 10-3 10-2 10-1 Frequency (rad/s) 10° 101 102 Click Save and Submit to save and submit. Click Save All Answers to save all answers.
