Consider a vane mounted on a moving cart. A water jet strikes the vane with a velocity of V, = 20 m/s and is deflected b

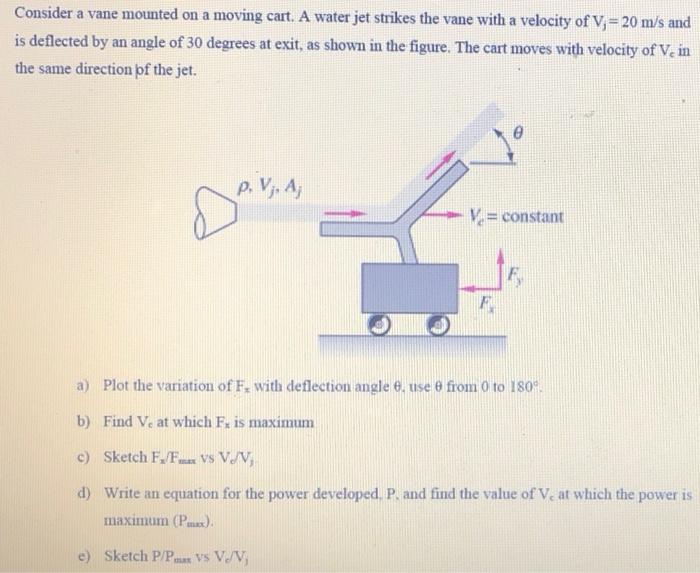

Consider a vane mounted on a moving cart. A water jet strikes the vane with a velocity of V, = 20 m/s and is deflected by an angle of 30 degrees at exit, as shown in the figure. The cart moves with velocity of Vein the same direction bf the jet. P. V. Aj ол V = constant F a) Plot the variation of F- with deflection angle 6. use 8 from 0 to 1809 b) Find Ve at which FX is maximum c) Sketch F/F vs VIV d) Write an equation for the power developed. P. and find the value of Ve at which the power is maximum (Pmax) e) Sketch P/Pm vs V/V
