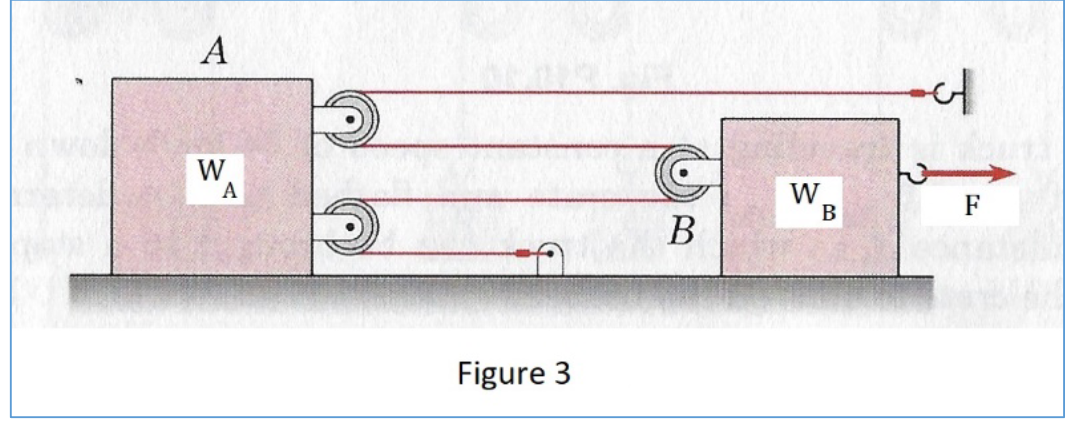

А och W A W B F B Figure 3
Refer to Figure 3. The two blocks as shown are moving to the right. The coefficient of kinetic friction is 0.1 between the support and the blocks. The acceleration of Block B is 8.6291 ft/s^2 to the right. The variables in the figure are as follows = F = 35 lbf , force acting on Block B WA = 96.6 lbf, weight of Block A WB = 64.4 lbf , weight of Block B 2 - In the question that follows, select the answer that is closest to the true value. What is the tension in the cable in units of lbf ? O 5.65 O 7.01 O 6.33 7.70
