(a) A solid steel (G= 80 GPa) shaft is securely fastened to a hollow bronze (G - 40 GPa) shaft as shown in Figure 0.2 (a

Post by answerhappygod »

A A Solid Steel G 80 Gpa Shaft Is Securely Fastened To A Hollow Bronze G 40 Gpa Shaft As Shown In Figure 0 2 A 1
A A Solid Steel G 80 Gpa Shaft Is Securely Fastened To A Hollow Bronze G 40 Gpa Shaft As Shown In Figure 0 2 A 1 (26.86 KiB) Viewed 40 times

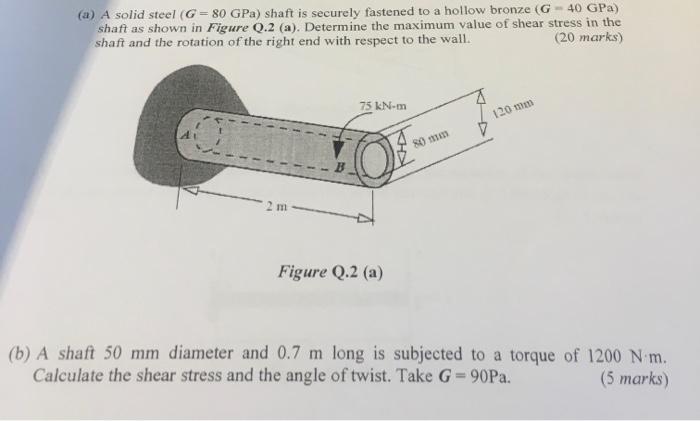

(a) A solid steel (G= 80 GPa) shaft is securely fastened to a hollow bronze (G - 40 GPa) shaft as shown in Figure 0.2 (a). Determine the maximum value of shear stress in the shaft and the rotation of the right end with respect to the wall. (20 marks) 75 kN-m 120 mm S) 2 m Figure Q.2 (a) (b) A shaft 50 mm diameter and 0.7 m long is subjected to a torque of 1200 Nm. Calculate the shear stress and the angle of twist. Take G = 90Pa. (5 marks)
