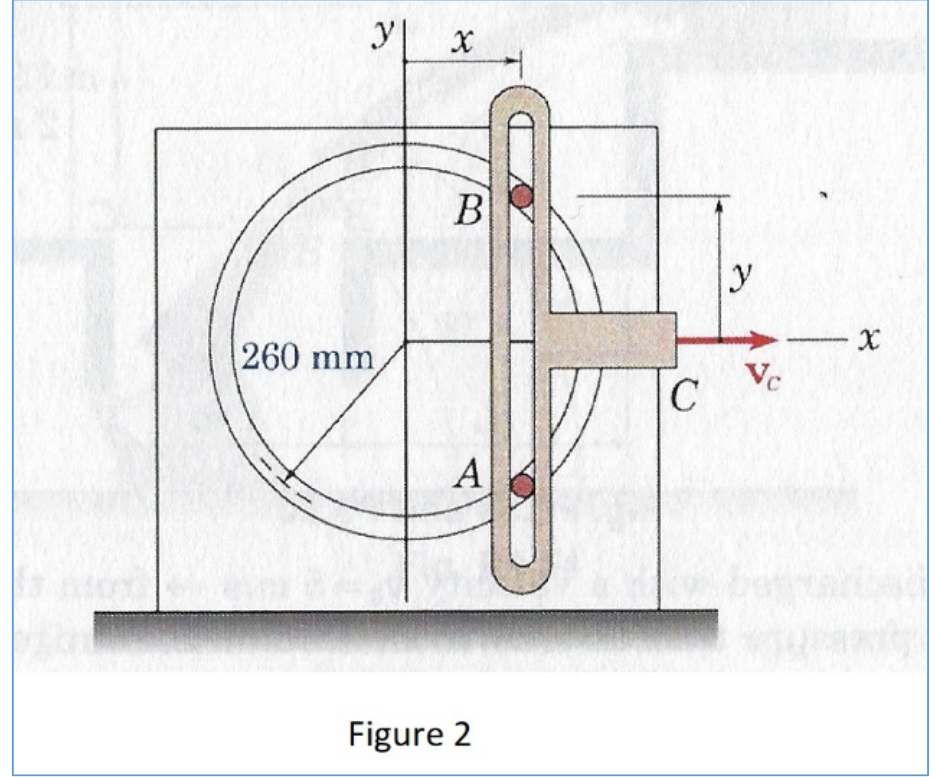

Ух B у 260 mm Vc С A Figure 2
Refer to Figure 2. The motions of two pins A and B are constrained in such a way that they remain in the vertical slot of member C and in the circular path at all times as shown. The velocity of C is 100 mm/s to the right and the radius of the circle is 260 mm. In the question that follows, select the answer that is closest to the true value. What is the y component of velocity of Point B when x = 50 mm in units of mm/s ? у -19.60 0 -29.4 -9.80 -39.2
