Question B.3 a) Sketch the closed-loop step response of the system shown in Figure B.3 for K = 0.01, K = 0.3 and K = 10.

[answerhappygod]

Question B 3 A Sketch The Closed Loop Step Response Of The System Shown In Figure B 3 For K 0 01 K 0 3 And K 10 1 (51.96 KiB) Viewed 35 times

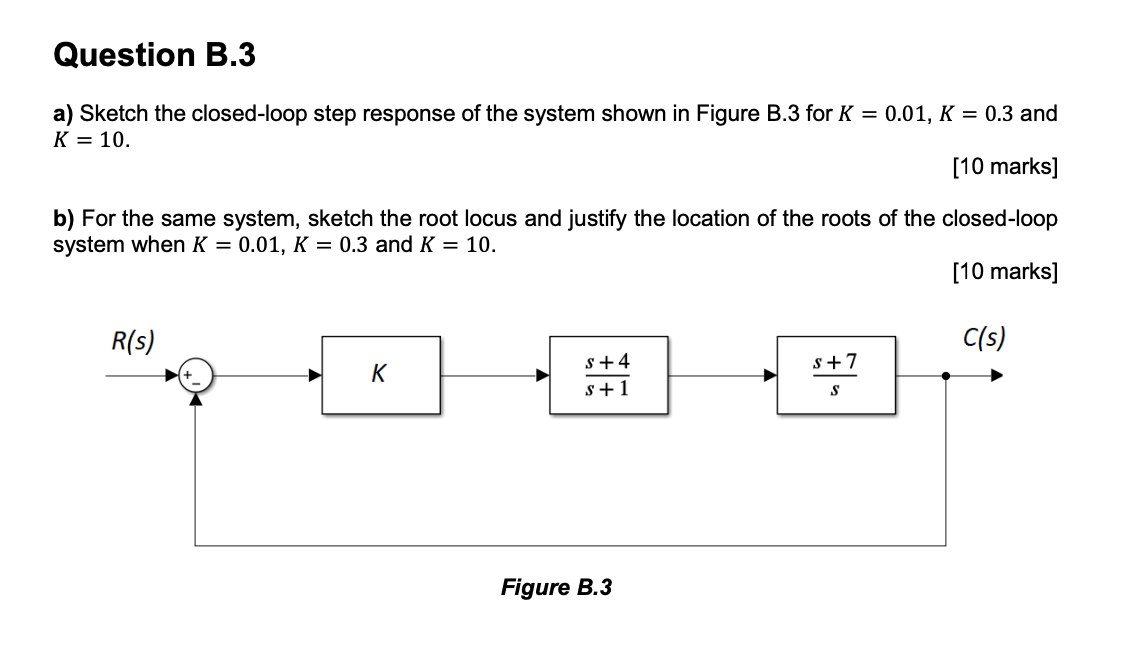

Question B.3 a) Sketch the closed-loop step response of the system shown in Figure B.3 for K = 0.01, K = 0.3 and K = 10. [10 marks] b) For the same system, sketch the root locus and justify the location of the roots of the closed-loop system when K = 0.01, K = 0.3 and K = 10. [10 marks] R(s) C(s) s +7 K S +4 S +1 ? S Figure B.3
