can you help

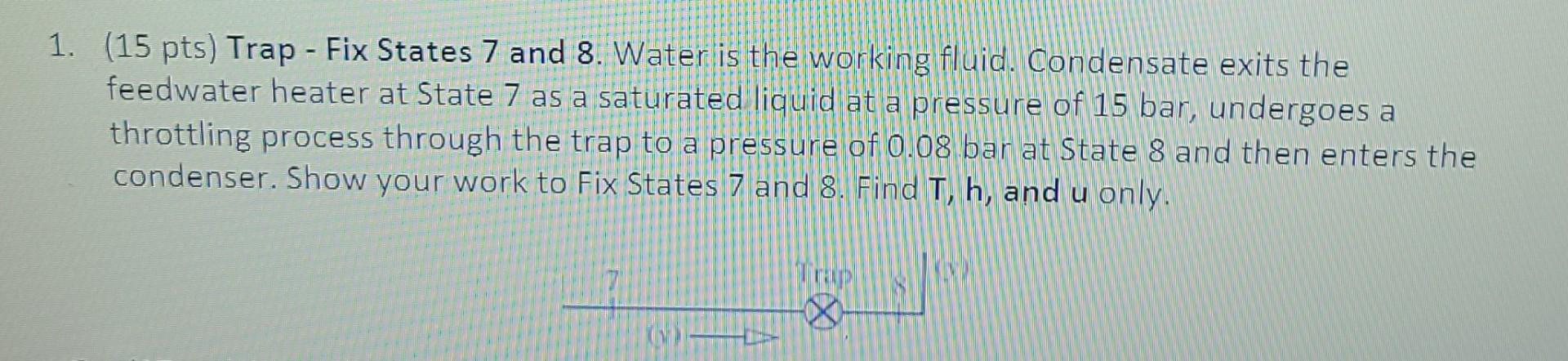

1. (15 pts) Trap - Fix States 7 and 8. Water is the working fluid. Condensate exits the feedwater heater at State 7 as a saturated liquid at a pressure of 15 bar, undergoes a throttling process through the trap to a pressure of 0.08 bar at State 8 and then enters the condenser. Show your work to Fix States 7 and 8. Find T, h, and u only.
