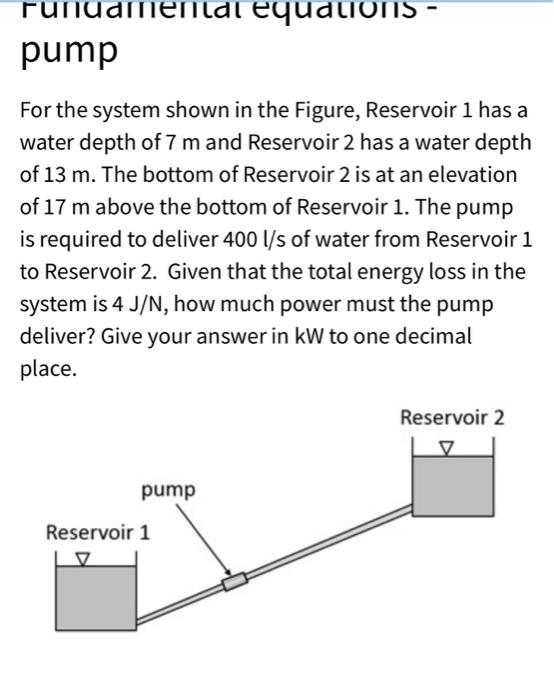

Fundamental equations - pump For the system shown in the Figure, Reservoir 1 has a water depth of 7 m and Reservoir 2 has a water depth of 13 m. The bottom of Reservoir 2 is at an elevation of 17 m above the bottom of Reservoir 1. The pump is required to deliver 400 l/s of water from Reservoir 1 to Reservoir 2. Given that the total energy loss in the system is 4 J/N, how much power must the pump deliver? Give your answer in kW to one decimal place. Reservoir 2 pump Reservoir 1

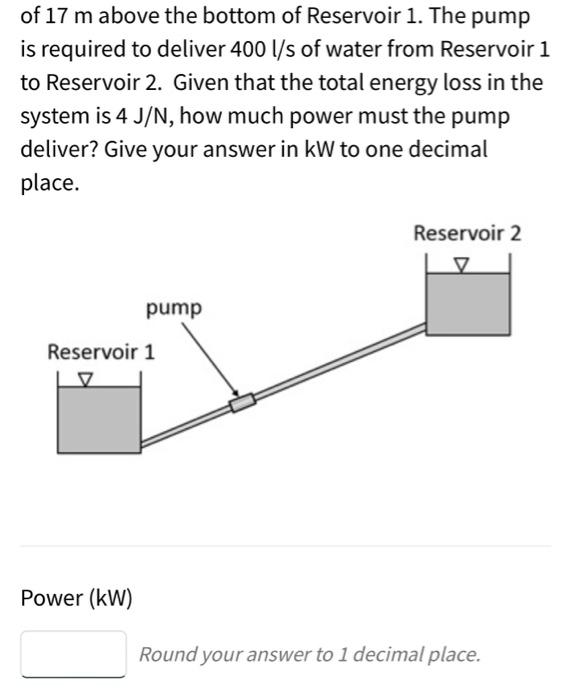

of 17 m above the bottom of Reservoir 1. The pump is required to deliver 400 l/s of water from Reservoir 1 to Reservoir 2. Given that the total energy loss in the system is 4 J/N, how much power must the pump deliver? Give your answer in kW to one decimal place. Reservoir 2 pump Reservoir 1 Power (kW) Round your answer to 1 decimal place.
