Submit a MATLAB file (.m) that obtains the numerical solution, i.e. x(t), for a Van der Pol oscillator subject to a unit

[answerhappygod]

Submit A Matlab File M That Obtains The Numerical Solution I E X T For A Van Der Pol Oscillator Subject To A Unit 1 (32.04 KiB) Viewed 34 times

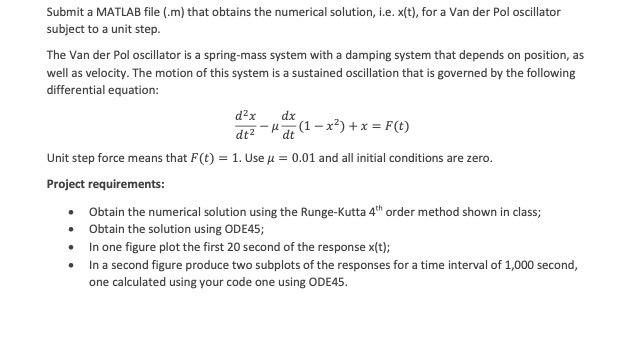

Submit a MATLAB file (.m) that obtains the numerical solution, i.e. x(t), for a Van der Pol oscillator subject to a unit step The Van der Pol oscillator is a spring-mass system with a damping system that depends on position, as well as velocity. The motion of this system is a sustained oscillation that is governed by the following differential equation: d2x dx dez - Mai (1 - x?) + x = F(t) Unit step force means that F(t) = 1. Use j = 0.01 and all initial conditions are zero. Project requirements: • Obtain the numerical solution using the Runge-Kutta 4" order method shown in class; • Obtain the solution using ODE45; • In one figure plot the first 20 second of the response x(t); In a second figure produce two subplots of the responses for a time interval of 1,000 second, one calculated using your code one using ODE45.
