The following shelf bracket is supported by a pin at B and a roller at A. Replace the distributed load with an equivalen

Post by answerhappygod »

The Following Shelf Bracket Is Supported By A Pin At B And A Roller At A Replace The Distributed Load With An Equivalen 1
The Following Shelf Bracket Is Supported By A Pin At B And A Roller At A Replace The Distributed Load With An Equivalen 1 (36.31 KiB) Viewed 42 times

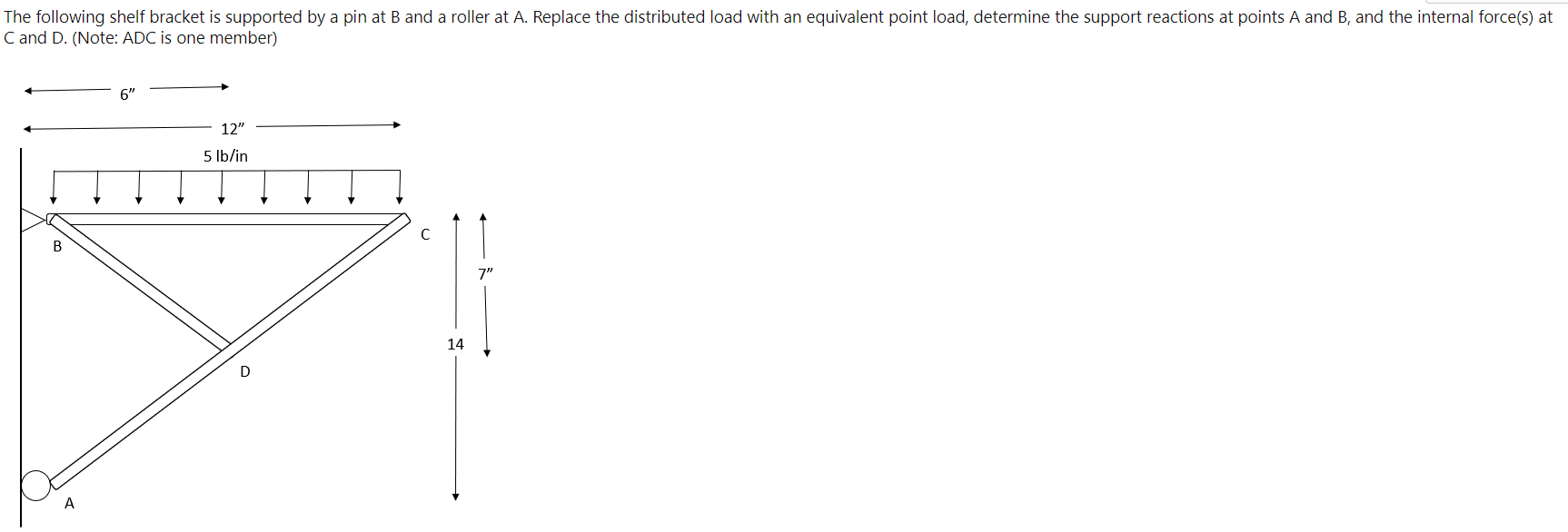

The following shelf bracket is supported by a pin at B and a roller at A. Replace the distributed load with an equivalent point load, determine the support reactions at points A and B, and the internal force(s) at C and D. (Note: ADC is one member) 12" 5 lb/in 7" 14
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
