3) Create a Functional Gage for Fig. 8-24' on 'REF 8b U Profile + Position 'found on pages 1 & 2. Show the actual dimensions for the 'gage member of the functional gage; it is the part shaded with dots.

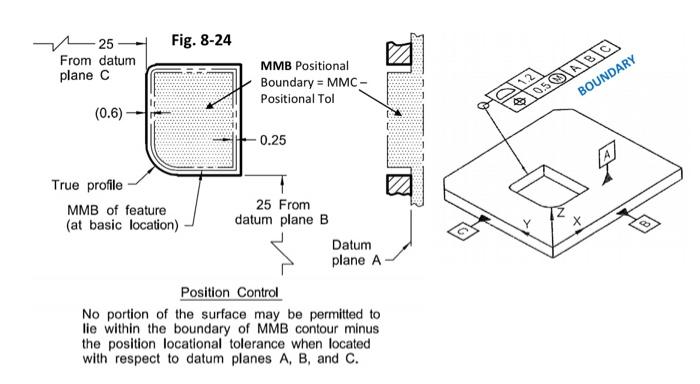

Fig. 8-24 25 From datum planec IN MMB Positional Boundary = MMC- Positional Tol a12 (0.6) 100TABIC BOUNDARY -0.25 True profile MMB of feature (at basic location) 25 From datum plane B Datum plane A Position Control No portion of the surface may be permitted to lie within the boundary of MMB contour minus the position locational tolerance when located with respect to datum planes A, B, and C.
