Assessment 1 2. Question 2 [24] A Slider crank mechanism is shown in Figure 2.1. The dimensions of various links are BI

[answerhappygod]

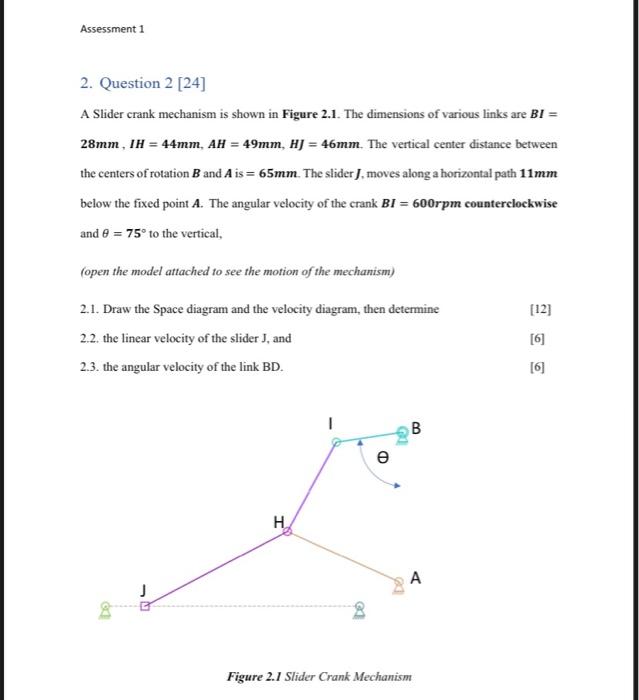

Assessment 1 2 Question 2 24 A Slider Crank Mechanism Is Shown In Figure 2 1 The Dimensions Of Various Links Are Bi 1 (31.98 KiB) Viewed 51 times

Assessment 1 2. Question 2 [24] A Slider crank mechanism is shown in Figure 2.1. The dimensions of various links are BI = 28mm, IH = 44mm, AH = 49mm, HJ = 46mm. The vertical center distance between the centers of rotation B and Ais= 65mm. The slider J, moves along a horizontal path 11mm below the fixed point A. The angular velocity of the crank BI = 600rpm counterclockwise and e = 75° to the vertical, (open the model attached to see the motion of the mechanism) 2.1. Draw the Space diagram and the velocity diagram, then determine 2.2. the linear velocity of the slider J, and 2.3. the angular velocity of the link BD. [12] [6] [6] B HA А 2 Figure 2.1 Slider Crank Mechanism
