Please provide separate graphs for each case with the code. Thank you. f(x) 3 A O 이 7. Choose reasonable values for each

Post by answerhappygod »

1
1 (36.73 KiB) Viewed 40 times

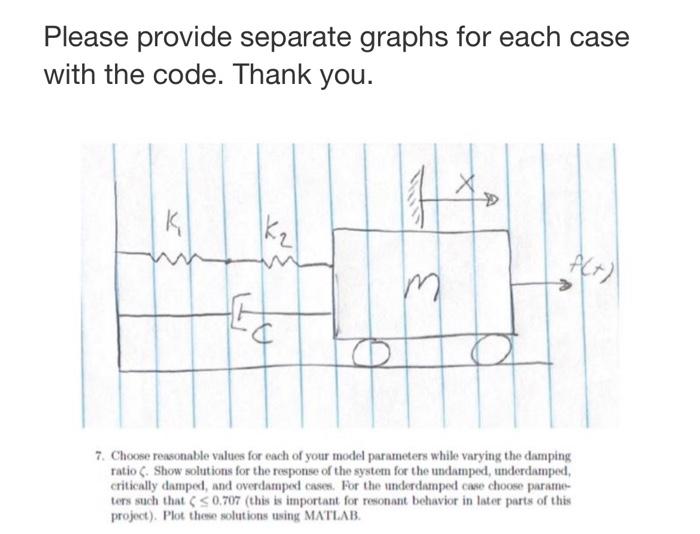

Please provide separate graphs for each case with the code. Thank you. f(x) 3 A O 이 7. Choose reasonable values for each of your model parameters while varying the damping ratio ( Show solutions for the response of the system for the undamped, underdamped, critically damped, and overdamped cases. For the underdamped case choose parame- ters such that < < 0.707 (this is important for resonant behavior in later parts of this project). Plot these solutions using MATLAB
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
