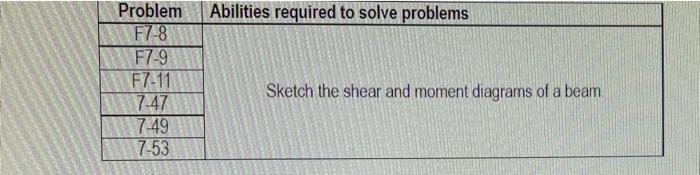

Abilities required to solve problems Problem F7-8 F7-9 F7-11 7-47 7-49 7-53 Sketch the shear and moment diagrams of a beam

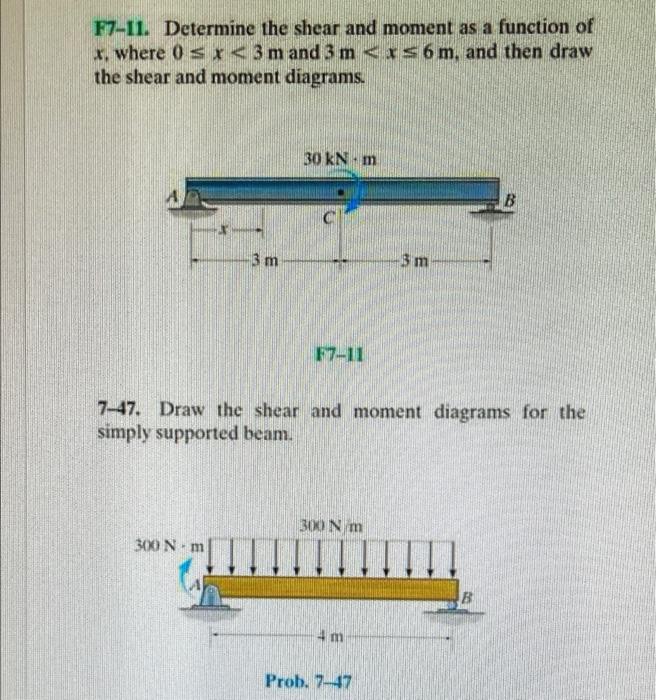

F7–11. Determine the shear and moment as a function of x, where 0 s < 3 m and 3 m <as 6 m, and then draw the shear and moment diagrams. 30 kNm B 3 m -3 m F7-11 7–47. Draw the shear and moment diagrams for the simply supported beam. 300 Nm 300 Nm B Am Prob. 747
