PLATE 3A Draw the cam profile for a knife-edge follower having the following motion: rise 50 mm during 150 deg turn with

Post by answerhappygod »

Plate 3a Draw The Cam Profile For A Knife Edge Follower Having The Following Motion Rise 50 Mm During 150 Deg Turn With 1

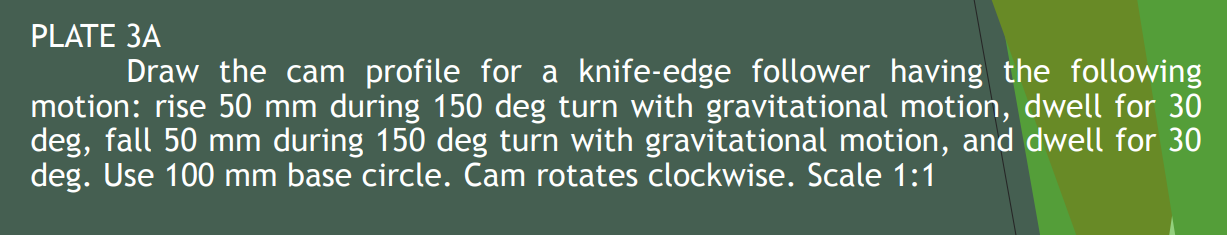

Plate 3a Draw The Cam Profile For A Knife Edge Follower Having The Following Motion Rise 50 Mm During 150 Deg Turn With 1 (77.52 KiB) Viewed 37 times
PLATE 3A Draw the cam profile for a knife-edge follower having the following motion: rise 50 mm during 150 deg turn with gravitational motion, dwell for 30 deg, fall 50 mm during 150 deg turn with gravitational motion, and dwell for 30 deg. Use 100 mm base circle. Cam rotates clockwise. Scale 1:1
