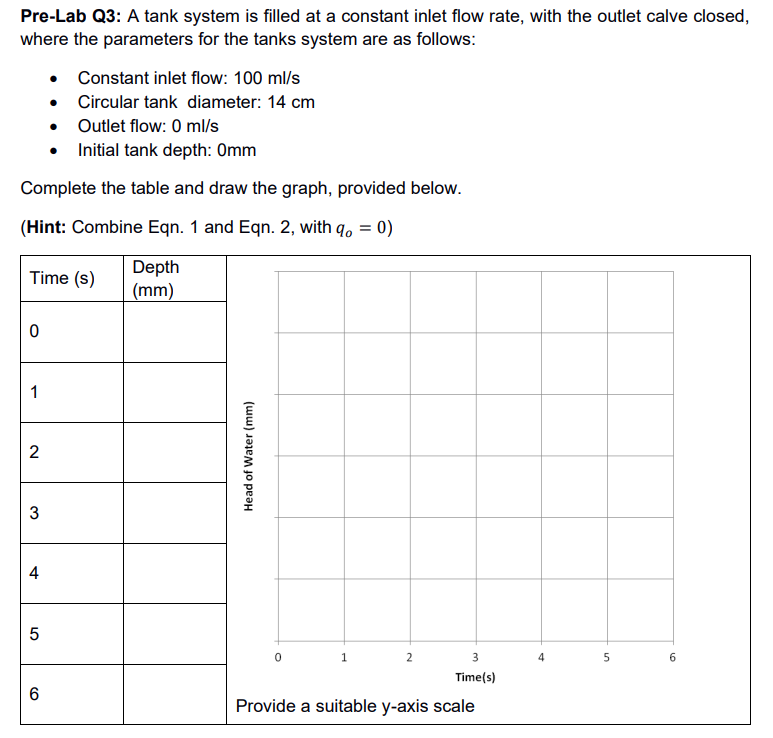

Pre-Lab Q3: A tank system is filled at a constant inlet flow rate, with the outlet calve closed, where the parameters for the tanks system are as follows: • Constant inlet flow: 100 ml/s • Circular tank diameter: 14 cm • Outlet flow: 0 m/s • Initial tank depth: Omm Complete the table and draw the graph, provided below. (Hint: Combine Eqn. 1 and Eqn. 2, with %. = 0) Time (s) Depth (mm) 0 1 N Head of Water (mm) 3 3 4 5 1 2 3 4 5 on 6 Time(s) 6 Provide a suitable y-axis scale
dV dt = qi - 90 Eqn. 1 V = Ah Eqn. 2
